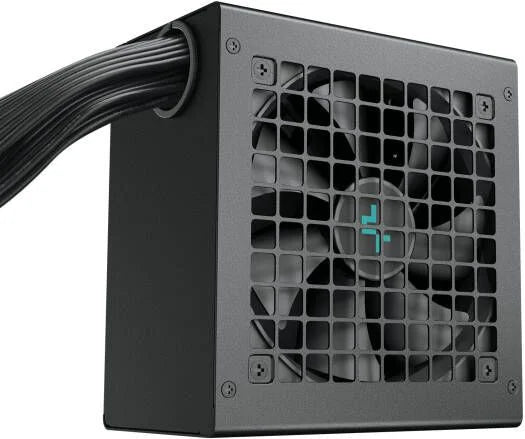

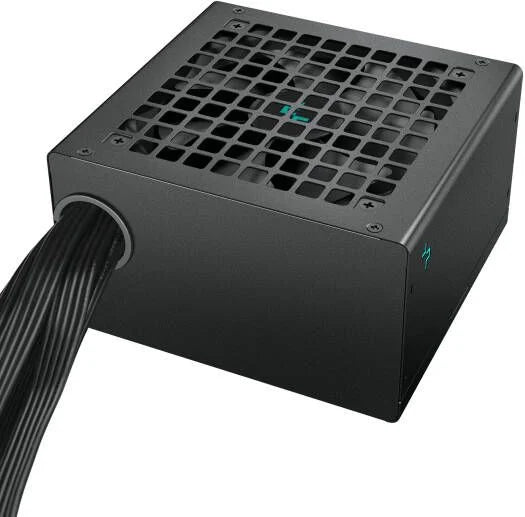

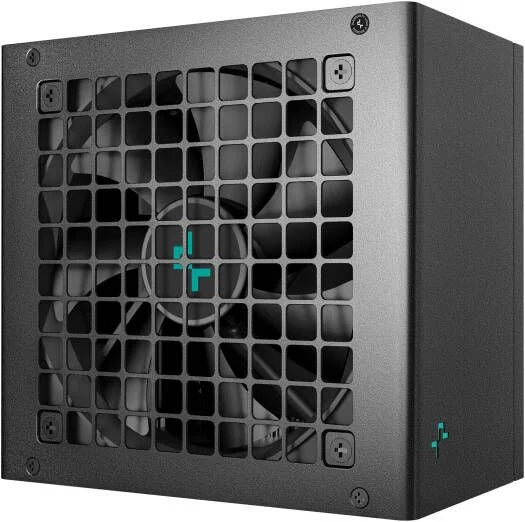

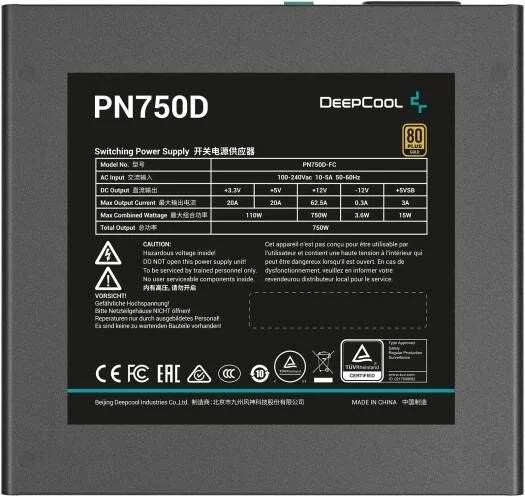

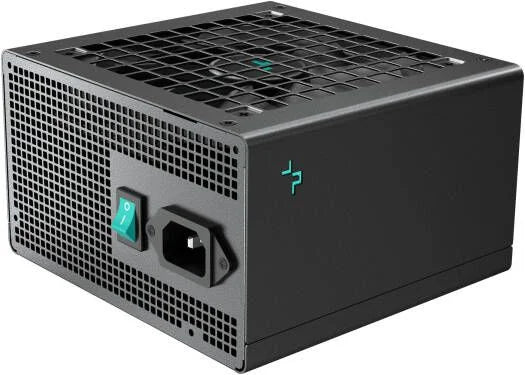

DeepCool PN750D Non-Modular Power Supply, 750W Power, 80 Plus Gold Certified, 120mm Fan Size, Active PFC + Full Bridge SRC LLC + DC to DC, Hydro Bearing, Black.
DeepCool PN750D Non-Modular Power Supply, 750W Power, 80 Plus Gold Certified, 120mm Fan Size, Active PFC + Full Bridge SRC LLC + DC to DC, Hydro Bearing, Black.
Regular price
37.900 BHD
Regular price
Sale price
37.900 BHD
Unit price
per
Tax included.
Couldn't load pickup availability
| Type | ATX12V V3.1 |
| Product Dimensions (W x L x H) | 150×140×86mm (W x L x H) |
| Efficiency Certification | 80Plus Gold |
| Fan Size | 120mm |
| Fan Bearing | HYB (Hydro Bearing) |

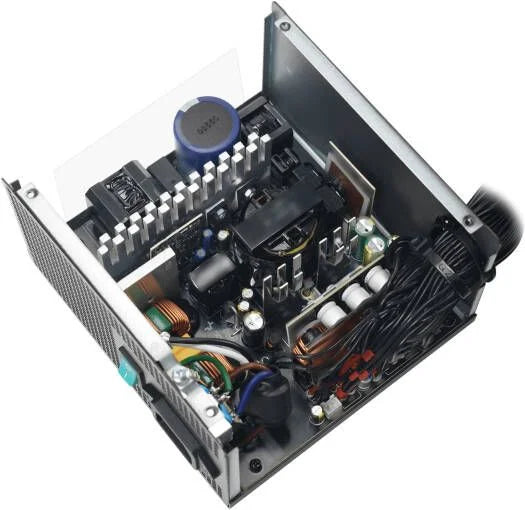

| Topology | Active PFC + Full Bridge SRC LLC + DC to DC |
| Capacitors | Chinese Electrolytic Capacitors |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms (80% Load) |
| Efficiency | ≥90% Under Typical Load (50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO |
| Operation Temperature | 0 - 40℃ |
| Regulatory | CE/FCC/CCC/TUV-RH/cTUVus/RCM/EAC |
| ErP Regulation | ErP 2014 |
| Environment Protection | WEEE/RoHS/Triman/P65 |
| MTBF | 100,000 Hours |
| Main Connectors | 1 x 24 pin (20+4) ATX |
| EPS/CPU Connectors | 2 x 8 pin (4+4) EPS (CPU) |
| SATA Power Connectors | 8 |
| Molex Connectors | 2 |
| PCIe 6-Pin Connectors | 0 |
| PCIe 6+2-Pin Connectors | 3 |
| PCIe 8-Pin Connectors | 0 |
| PCIe 12-Pin Connectors | 0 |
| PCIe 12+4-Pin 12VHPWR Connectors | 1 |
