DeepCool GamerStorm PS1000P 1000W 80 PLUS Platinum & Cybenetics Platinum SFX Fully Modular Power Supply,
DeepCool GamerStorm PS1000P 1000W 80 PLUS Platinum & Cybenetics Platinum SFX Fully Modular Power Supply,
Couldn't load pickup availability
Description
The DeepCool GamerStorm PS1000P (MPN: R-PSA00P-FE0B-JGUK / Model ID: PSA00P-FE / EAN: 6933412724810) is a high-density 1000W Small Form Factor (SFX) power supply designed for Mini-ITX enthusiasts and compact workstation creators. Delivering 1000W of continuous power with Platinum-level thermal efficiency inside a standard 100mm-deep SFX footprint, it lets you run flagship graphics cards and high-core-count processors inside compact SFF cases.
Expanded Key Features
True 100mm SFX Footprint (SFX12V V4.1 & Native ATX 3.1): Measuring just 125 × 100 × 63.5 mm, the PS1000P avoids the extra 30mm length of SFX-L units—preserving critical space for thick triple-slot GPUs, AIO liquid cooler routing, and case airflow.
80 PLUS Platinum, Cybenetics Platinum & PPLP Platinum Certified: Achieves ≥92% conversion efficiency under typical 50% loads, minimizing wasted heat and keeping noise levels low inside tightly packed Mini-ITX enclosures.
Native Dual-Color 12V-2x6 PCIe 5.1 GPU Connector: Includes a native 16-pin (12V-2x6) PCIe 5.1 modular cable with a contrasting dual-color plug housing, giving builders instant visual confirmation that the GPU power connector is fully seated.

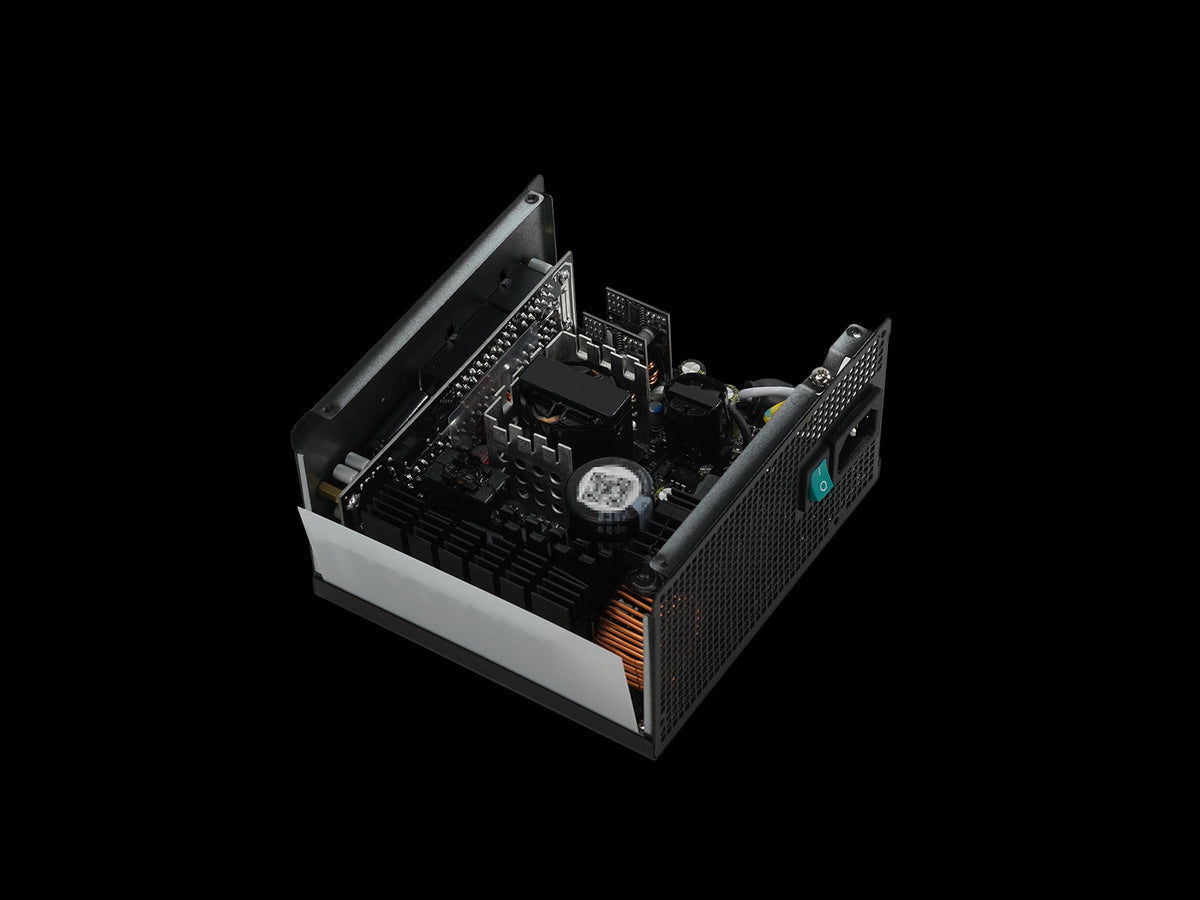

100% Full Japanese Electrolytic Capacitors & 83.3A +12V Rail: Built on an Active PFC + Half-Bridge SRC LLC + DC-to-DC platform populated with full Japanese electrolytic capacitors, delivering 996.6W (83.3A) on the +12V rail and a ≥16ms hold-up time at 80% load.

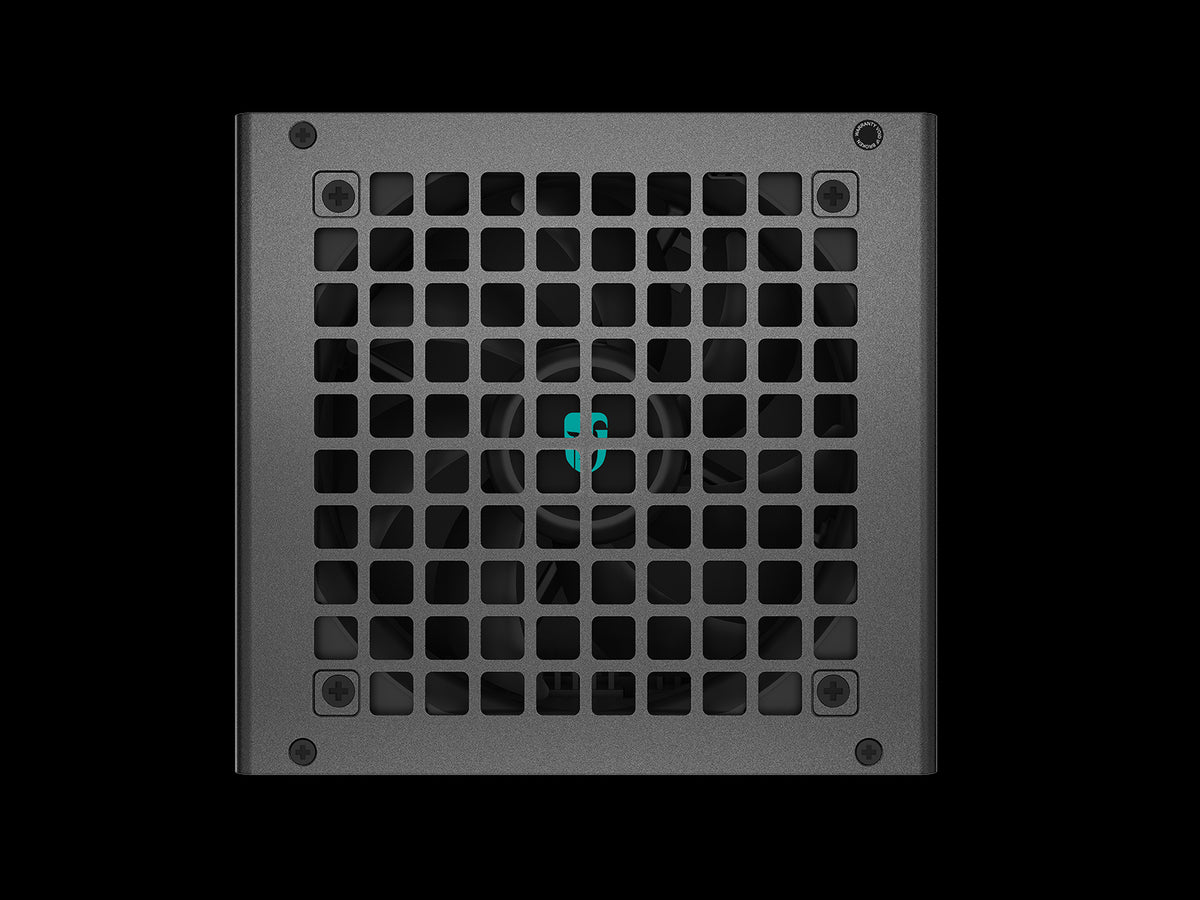

Slim 92 × 15 mm Fluid Dynamic Bearing (FDB) Fan: Uses a low-profile 92 × 92 × 15 mm FDB fan for quiet active cooling across 0–40°C operating temperatures and a 100,000-hour MTBF.

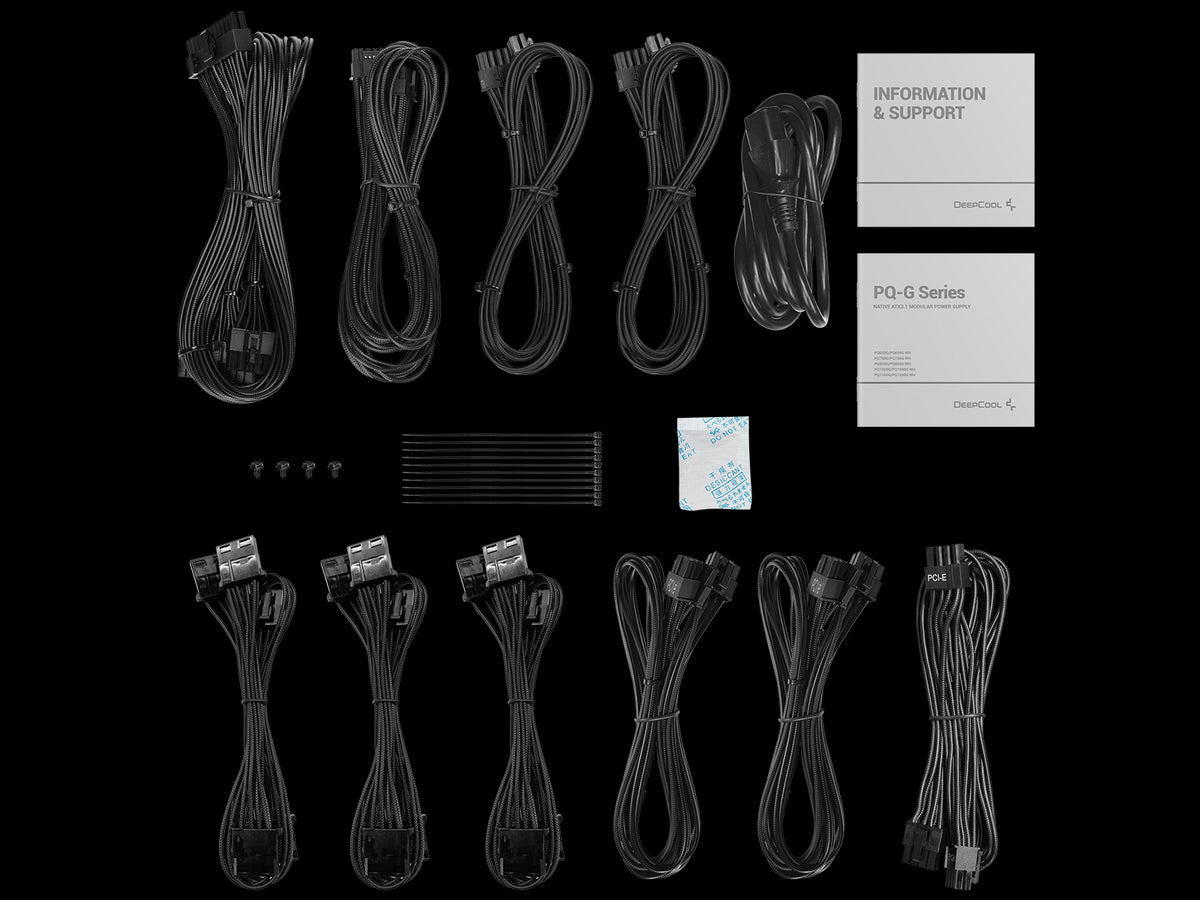

SFF-Optimized Sleeved Modular Cables & 1-Year Warranty: Custom-length black sleeved modular cables (including a 35cm 20+4-pin ATX cable, dual CPU EPS connectors, 3x PCIe 6+2-pin, 6x SATA, and 2x Molex) keep SFF routing clean, backed by 8-layer protection (OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO) and a 1-year warranty.
Specification
|
Feature |
Specification |
|---|---|
|
Brand |
DeepCool (GamerStorm Series) |
|
Model Name / Internal ID |
PS1000P |
|
Part Number (MPN / SKU) |
R-PSA00P-FE0B-JGUK |
|
EAN / Barcode |
6933412724810 |
|
Form Factor & Standard |
True SFX (Small Form Factor) | SFX12V V4.1 & Intel ATX12V V3.1 |
|
Total Power Output |
1000 Watts (+12V Rail: 83.3A / 996.6W) |
|
AC Input |
100 – 240V AC, 50/60Hz, 13A – 6.5A (UK 3-Pin Cord Included) |
|
Efficiency Certifications |
80 PLUS Platinum / Cybenetics Platinum / PPLP Platinum (≥92% at 50% Load) |
|
Modularity & Cabling |
Fully Modular | SFF-Length Black Sleeved Cables (20+4-Pin ATX: 35 cm) |
|
Native PCIe 5.1 Connector |
1 × Dual-Color 16-Pin (12V-2x6) PCIe 5.1 Modular Connector |
|
Additional Modular Connectors |
1× 20+4-Pin ATX (35cm), CPU 4+4-Pin EPS, 3× 6+2-Pin PCIe, 6× SATA, 2× 4-Pin Molex |
|
Circuit Topology |
Active PFC + Half-Bridge SRC LLC + DC-to-DC |
|
Internal Capacitors |
100% Full Japanese Electrolytic Capacitors |
|
Cooling Fan |
92 × 92 × 15 mm Fluid Dynamic Bearing (FDB) Fan |
|
Power Good Signal & Hold-Up Time |
100–150 ms | ≥ 16 ms (at 80% Load) |
|
Operating Temperature & MTBF |
0°C – 40°C | 100,000 Hours MTBF |
|
Safety Protections (8-Layer) |
OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO |
|
Regulatory & ErP |
TUV-RH, CCC, CE, FCC, RCM, EAC, CAN ICES-003(B), RoHS, WEEE | ErP 2014 |
|
Dimensions (W × L × H) |
125 × 100 × 63.5 mm |
|
Manufacturer Warranty |
1 Years |
