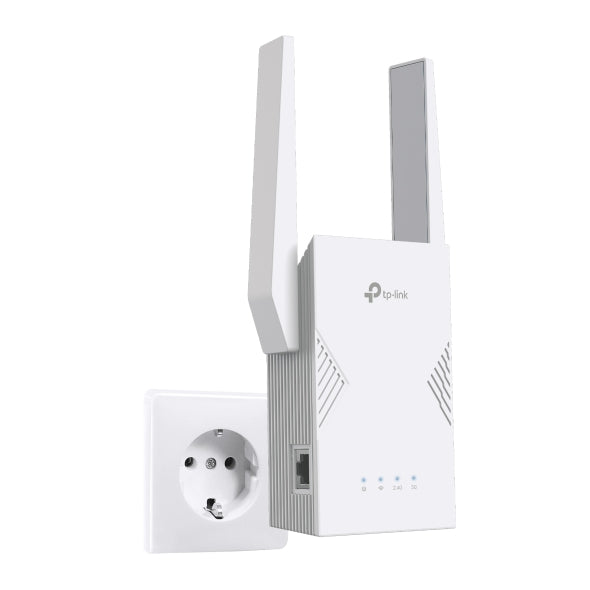

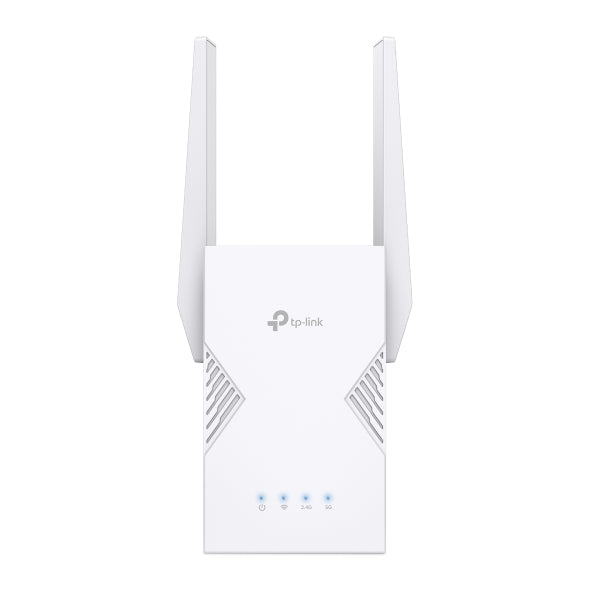

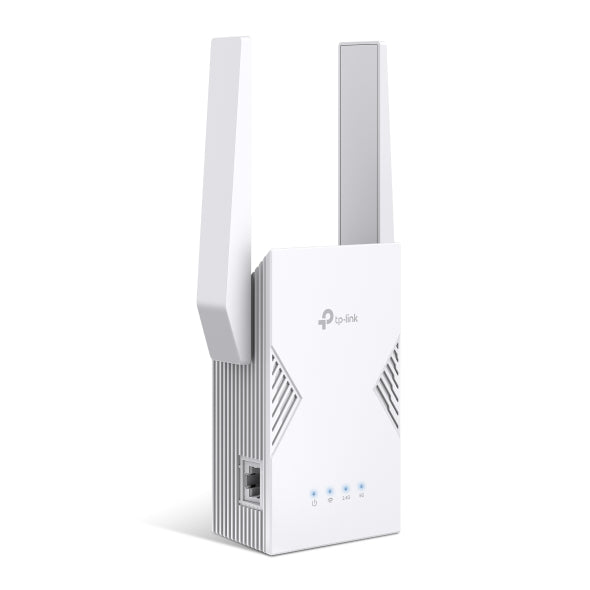

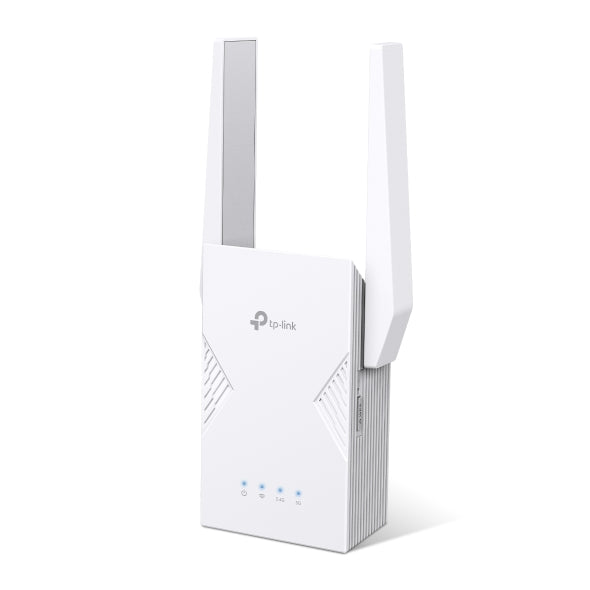

TPLink RE225BE BE3600 Dual-Band Wi-Fi 7 Range Extender

TPLink RE225BE BE3600 Dual-Band Wi-Fi 7 Range Extender

29.900 BHD
29.900 BHD
Sale Sold out

HARDWARE FEATURES
Interface 1 Gbps Ethernet Port
Button • WPS Button
• Reset Button
Input Power 100-240V~50/60Hz 0.3A
Max. Power Consumption 15W
Dimensions ( W x D x H ) 3.8 × 1.8 × 6.2 in (97 × 46 × 158 mm)
Antenna 2 External Antennas

WIRELESS FEATURES
Wireless Standards Wi-Fi 7
IEEE 802.11be/ax/ac/n/a 5 GHz
IEEE 802.11be/ax/n/b/g 2.4 GHz
Frequency • 5 GHz
• 2.4 GHz

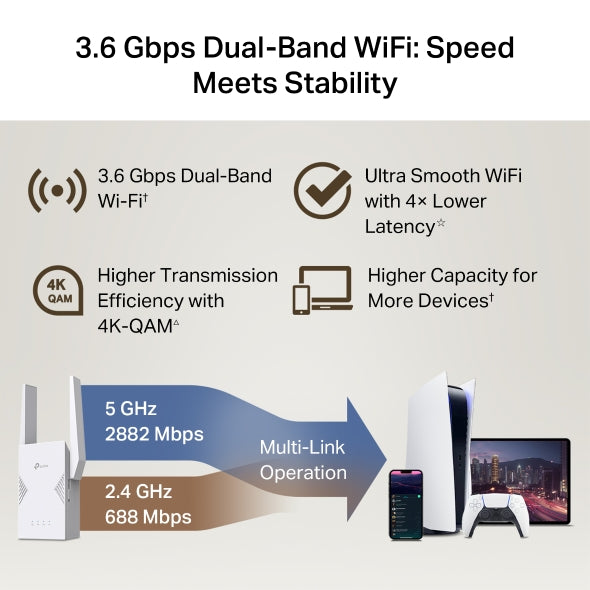

Signal Rate • 2882 Mbps at 5 GHz
• 688 Mbps at 2.4 GHz

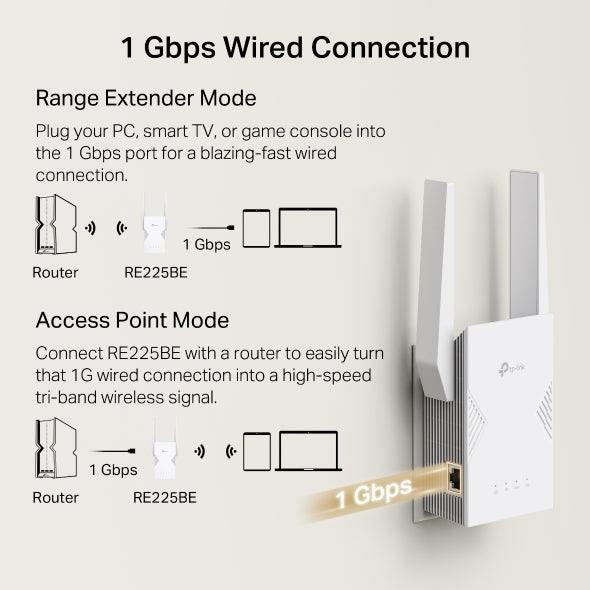

Working Modes Range Extender/Access Point
Reception Sensitivity 5GHz:
11be EHT20 MCS0:-96dBm
11be EHT40 MCS0:-94dBm
11be EHT80 MCS0:-91dBm
11be EHT160 MCS0:-88dBm
11be EHT20 MCS13:-59dBm
11be EHT40 MCS13:-57dBm
11be EHT80 MCS13:-54dBm
11be EHT160 MCS13:-51dBm

2.4GHz:
11be EHT20 MCS0:-95dBm
11be EHT40 MCS0:-93dBm
11be EHT20 MCS13:-58dBm
11be EHT40 MCS13:-56dBm
Wireless Security • WPA/WPA2-PSK encryptions
• WPA2/WPA3

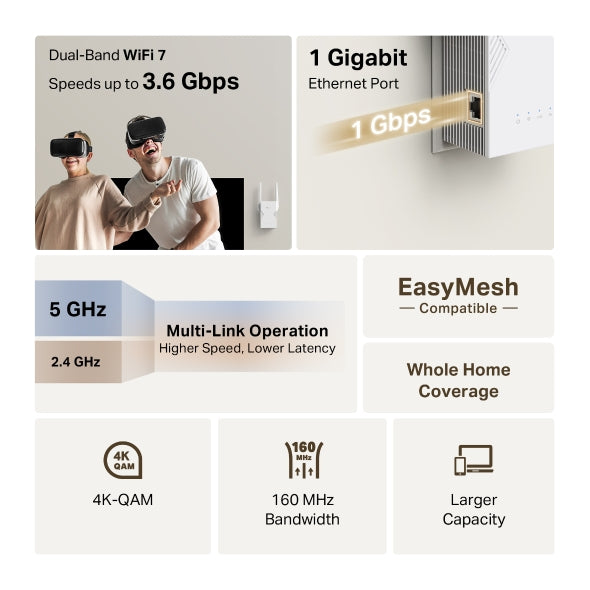

Advanced Features • Multi-Link Operation (MLO)
• 160 MHz Channel
• 4K-QAM
• Multi-RUs
Transmission Power FCC:
• 2.4GHz < 30dBm
• 5GHz < 30dBm
Mesh Technology EasyMesh-Compatible
Wireless Function • LED Control
• Access Control
• Power Schedule
• Wi-Fi Coverage

OTHER
Network Services Enabled by Default Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443   Protocol: TCP
DHCP Server
IP address assignment (DHCP)
• Port: 67   Protocol: UDP
App management
Manage and configure device through app
• Port: 20001   Protocol: TCP
• Port: 20002   Protocol: UDP
View full details
