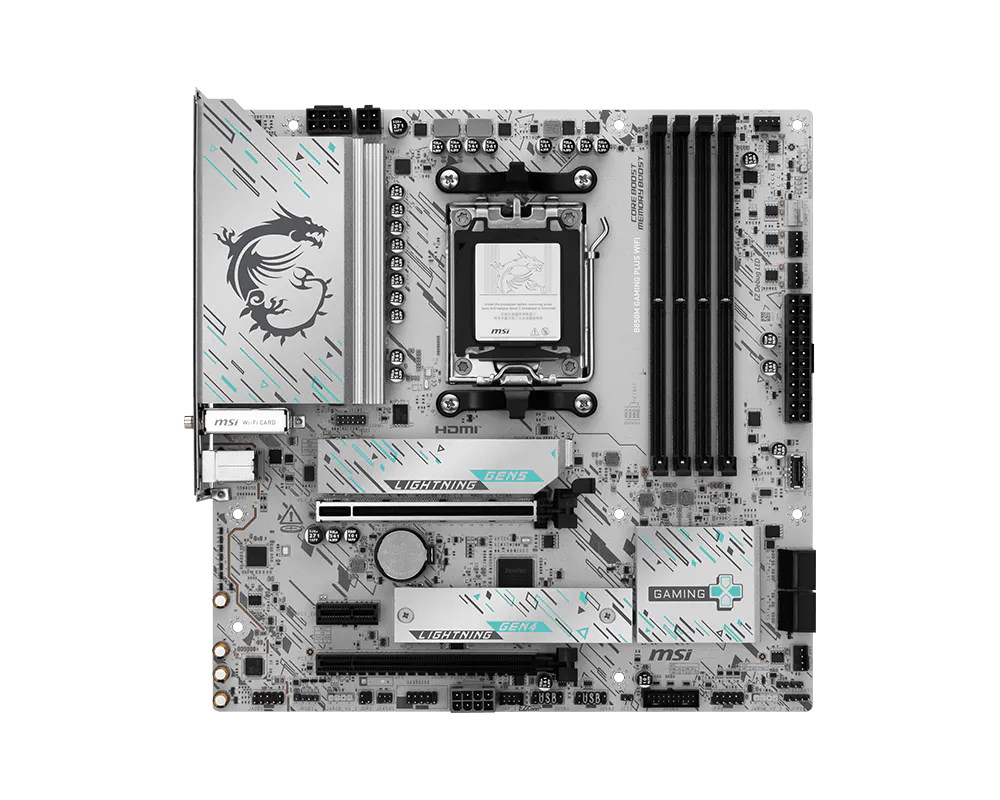

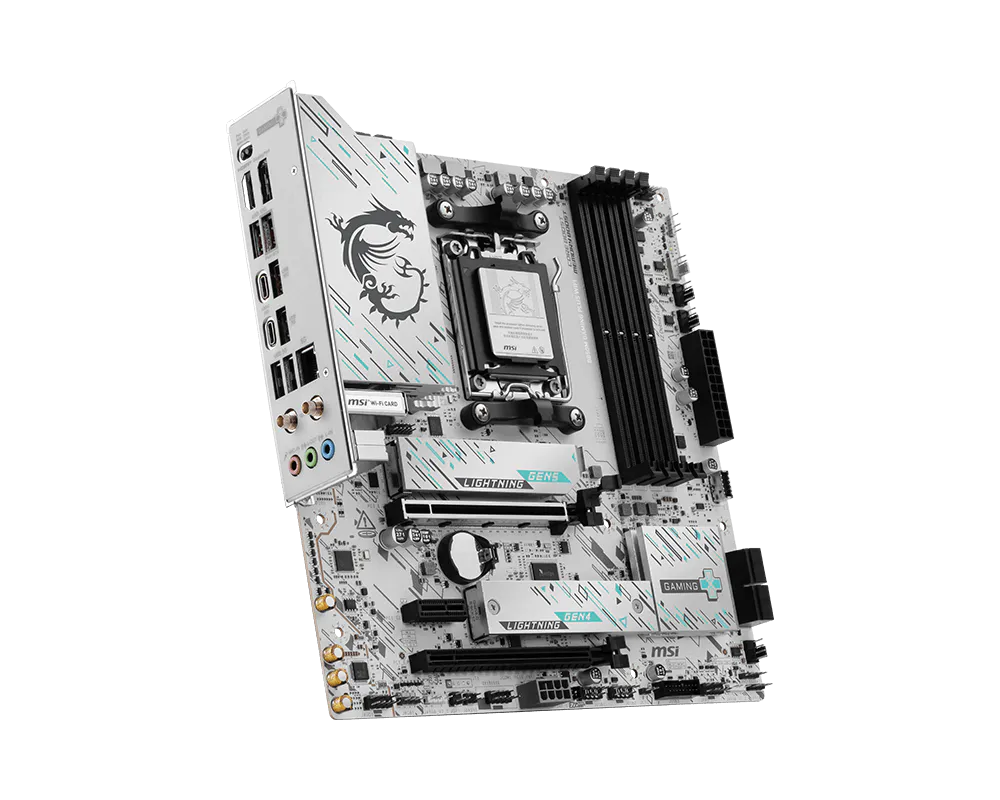

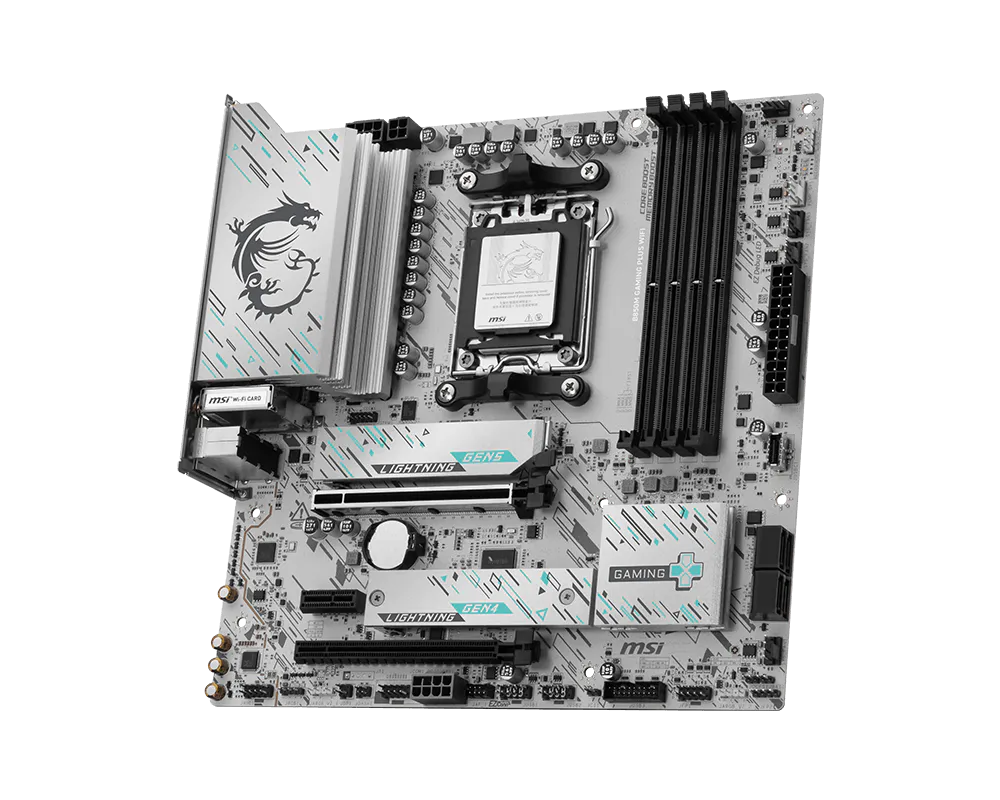

MSI B850M GAMING PLUS WIFI AM5 Motherboard

Short Description

MSI B850M GAMING PLUS WIFI is a next-generation AM5 motherboard designed for AMD Ryzen 9000, 8000, and 7000 series processors. It supports high-speed DDR5 memory, PCIe 5.0 graphics, Gen5 NVMe storage, WiFi 7, and 5G LAN, making it ideal for gaming, high-performance computing, and future upgrade builds.

---

Key Specifications

Platform

• AMD B850 chipset
• AM5 socket
• Supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors

---

Memory

• 4x DDR5 UDIMM slots
• Maximum capacity: 256GB
• DDR5 speeds: 5600 to 8200MHz (OC)
• Supports AMD EXPO overclocking profiles
• Dual-channel memory architecture
• Non-ECC, unbuffered memory support

---

Expansion Slots

• 1x PCIe 5.0 x16 slot (graphics card)
• Additional PCIe slots: PCIe 4.0 and PCIe 3.0
• Supports high-end GPU performance and future upgrades

---

Storage

• 2x M.2 slots
  • 1x PCIe 5.0 x4 (Gen5 SSD support)
  • 1x PCIe 4.0 x4
• 4x SATA 6Gb/s ports
• Supports RAID 0, RAID 1, RAID 10

---

Graphics Output

• HDMI 2.1 (up to 4K 60Hz)
• DisplayPort 1.4 (up to 4K 60Hz)
• Requires CPU with integrated graphics

---

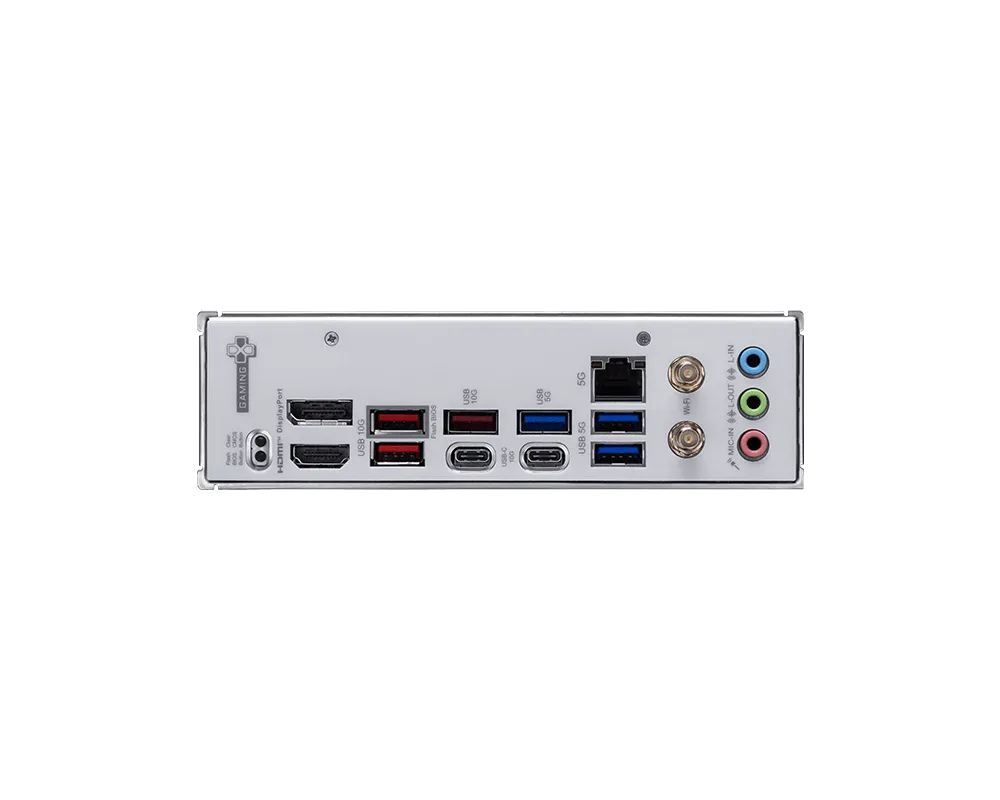

Connectivity

• WiFi 7 wireless networking
• Bluetooth 5.4
• 5G LAN (Realtek Ethernet controller)
• USB 10Gbps Type-A and Type-C support
• Multiple front and rear USB ports for high-speed devices

---

Audio

• Realtek ALC897 HD Audio codec
• 7.1-channel surround sound support

---

Internal Headers & Features

• Multiple fan headers (CPU, system, pump support)
• RGB and ARGB lighting headers
• TPM 2.0 support
• BIOS Flash button
• EZ Debug LED indicators
• Front panel USB and audio headers

---

Form Factor

• mATX (Micro-ATX)
• Dimensions: 243.84mm × 243.84mm
• Supports Windows 11 64-bit
