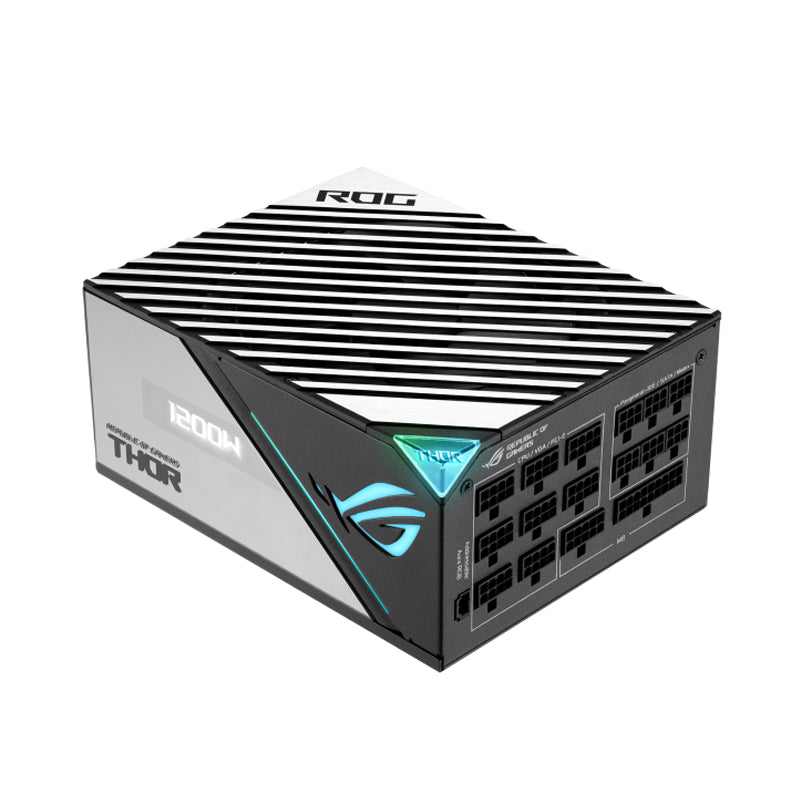

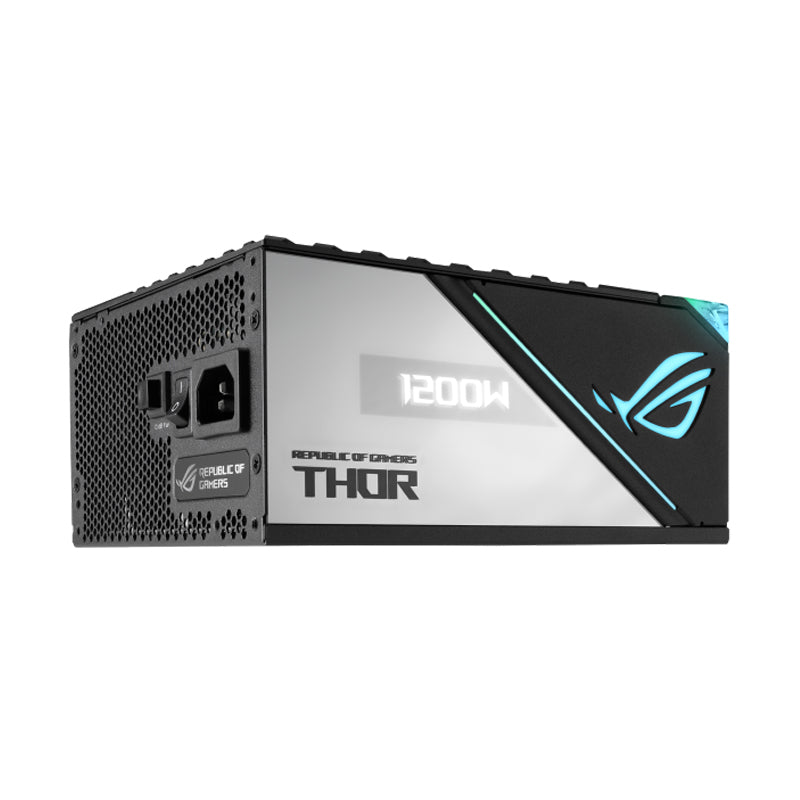

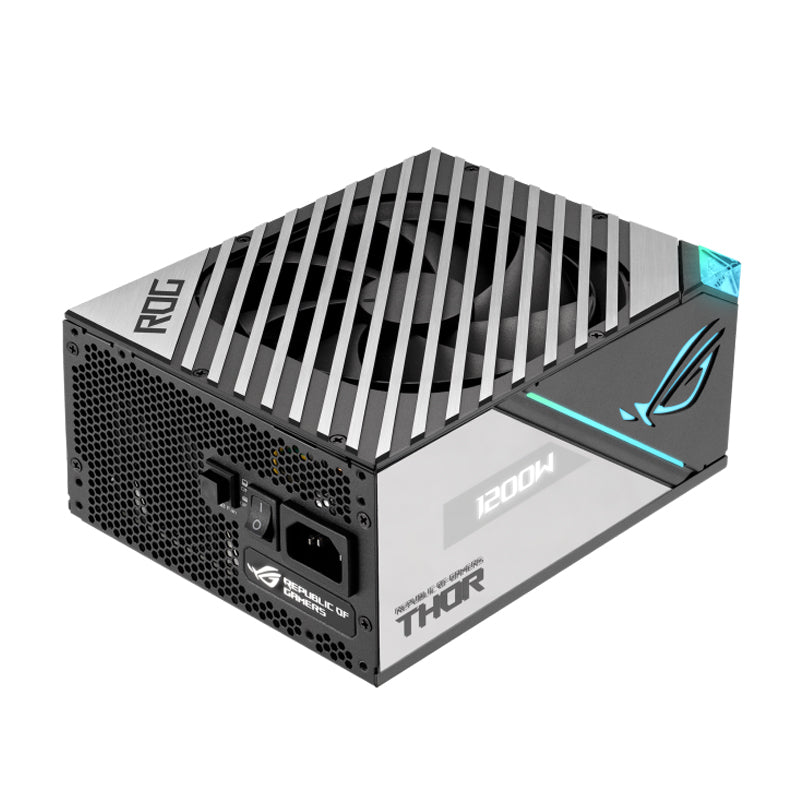

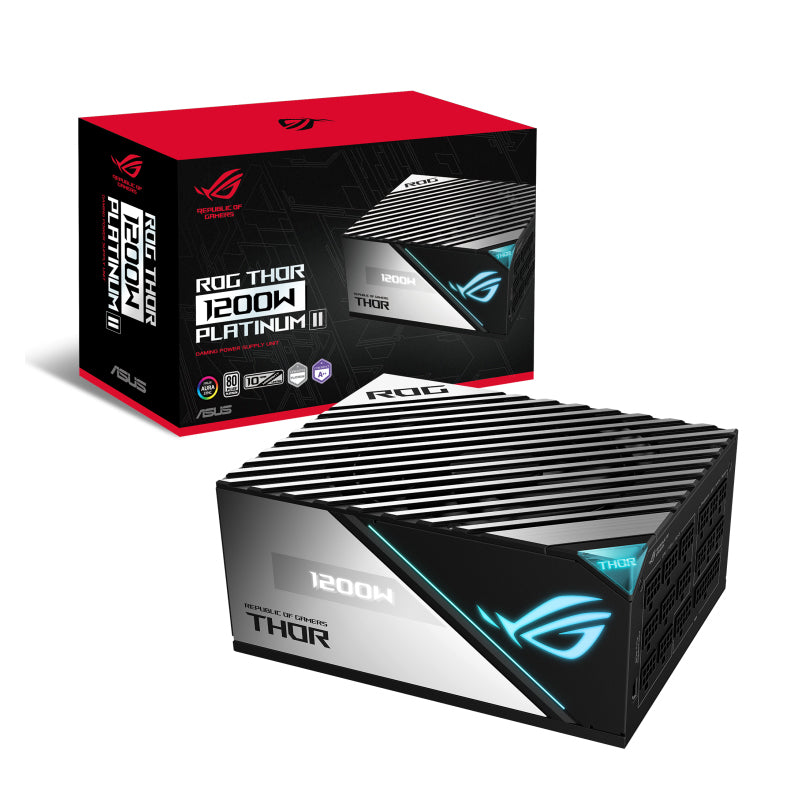

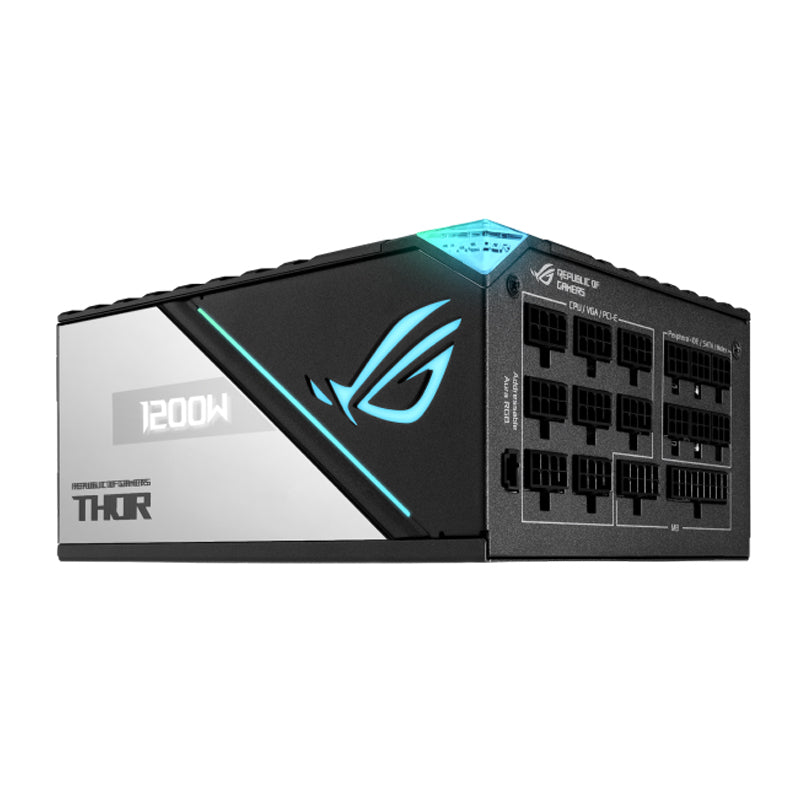

Asus Rog Thor 1200W Platinum II, 80Plus Platinum, Fully Modular ATX Power Supply

Model

ROG-THOR-1200P2-GAMING

PFC Type

Active PFC

Dimensions

190 x 150 x 86 mm

Efficiency

80Plus Platinum

MTBF

>120,000 hrs @ 25°C

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

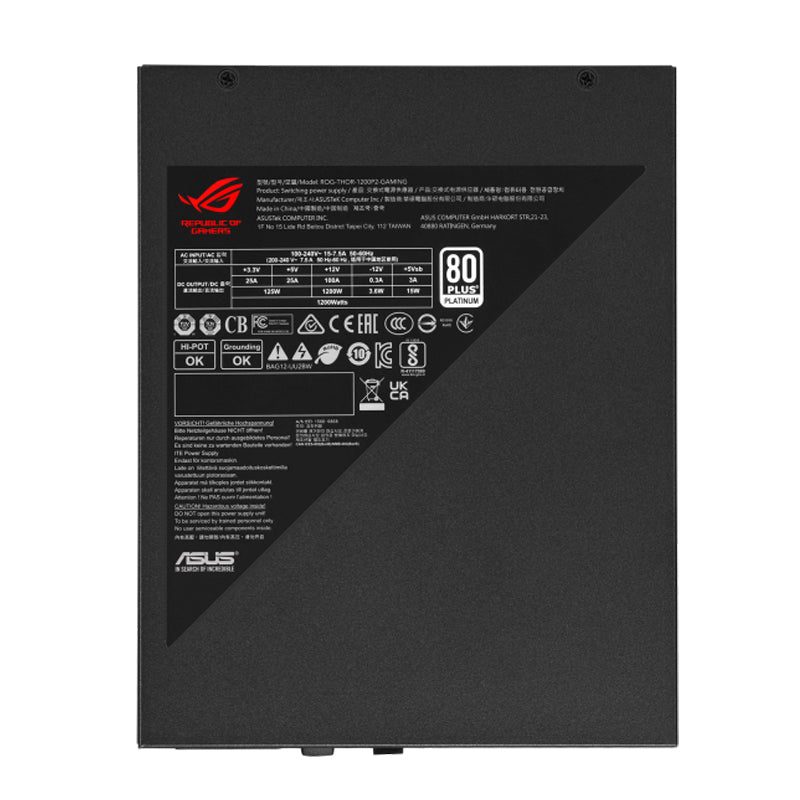

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

25A 25A 100A 0.3A 3A

Combined Load

125W 125W 1200W 3.6W 15W

Total Output

1200W

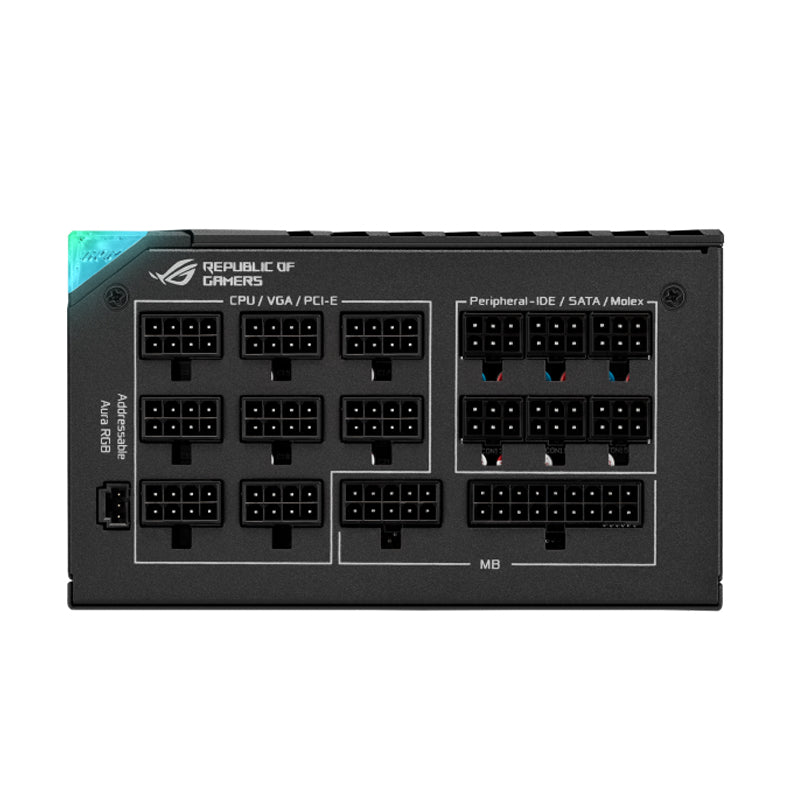

Cable Connectors

MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (component side)
PCI-E 6+2-pin x 8
SATA x 12
PERIPHERAL x 6

Package Contents

Power Cord x 1
Motherboard Power Cable x1 (610mm)
CPU Cable x2 (650mm)
PCIE Cable 16-pin x1 (675mm)
PCIE 1-to-1 Cable x4 (675mm)
PCIE 1-to-2 Cable x2 (675+75mm)
SATA 1-to-4 Cable x3 (400+120+120+120mm)
Peripheral 1-to-3 Cable x2 (450+120+120mm)
Addressable RGB Cable x1 (800mm)
ROG sticker x 1
ROG cable tie x 6
Sleeved Cable Combs (6-pin) x 4
Sleeved Cable Combs (8-pin) x 10
Sleeved Cable Combs (24-pin) x 2
Chassis Screws Package x 1
Cable Tie x 12
User Manual x 1

Weight

2.37 KG

AURA SYNC

ARGB

Cybenetics Noise Level Certification

A++

0dB Technology

Supported. The fan shuts off entirely when the PSU is under certain load

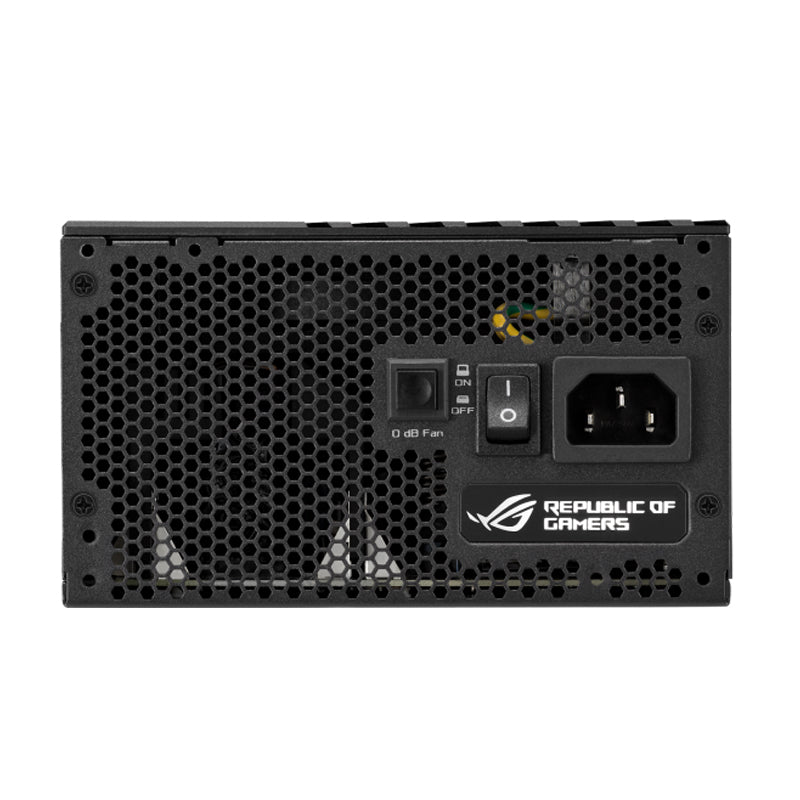

0dB Fan Button

Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels.
