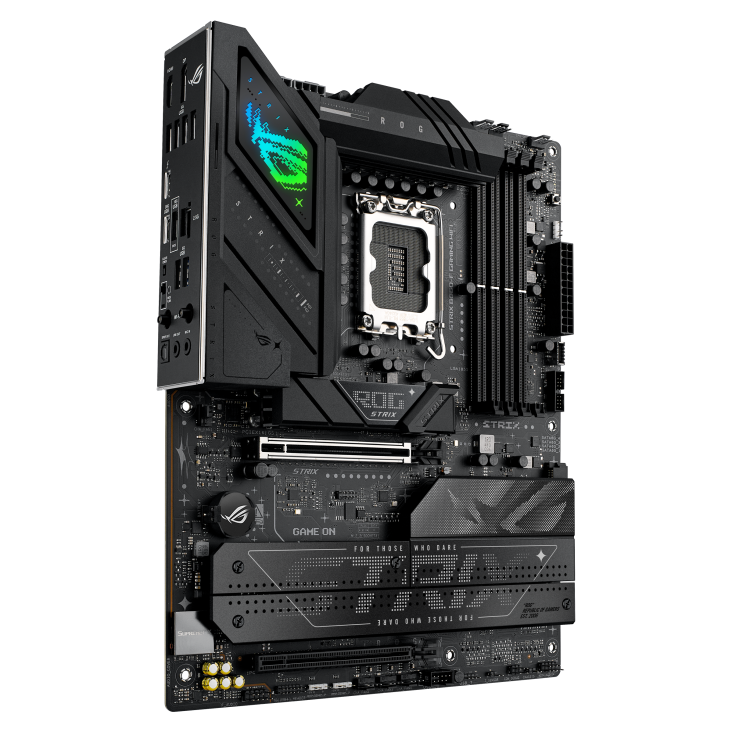

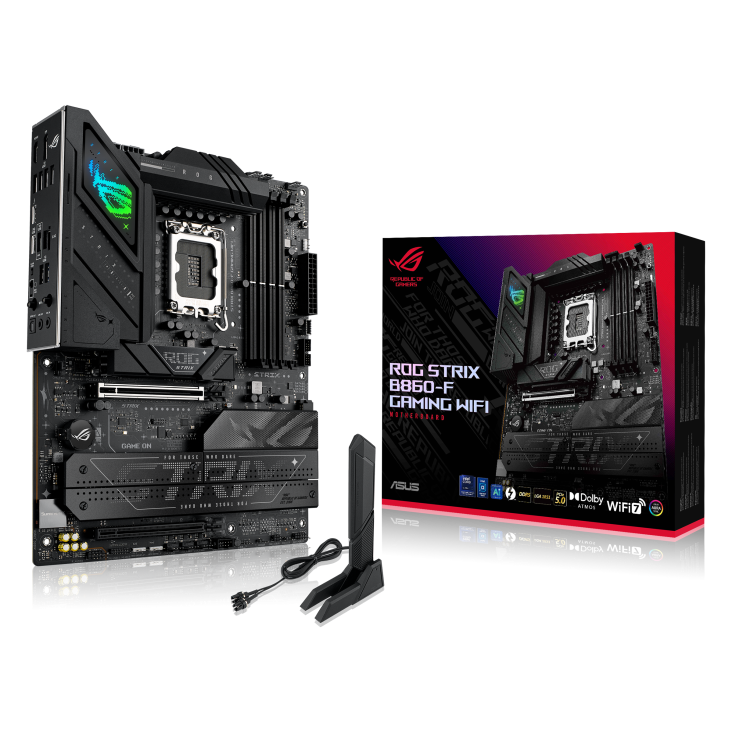

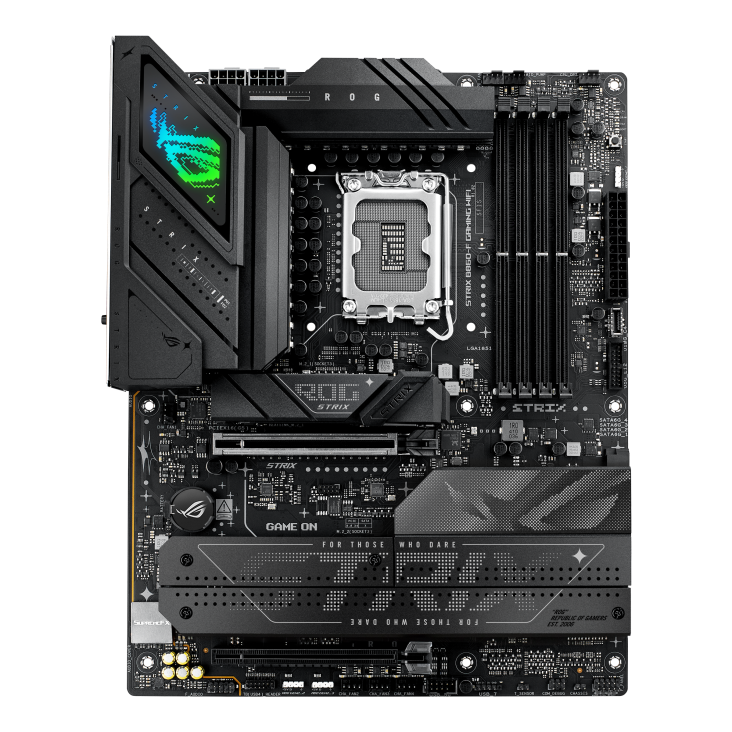

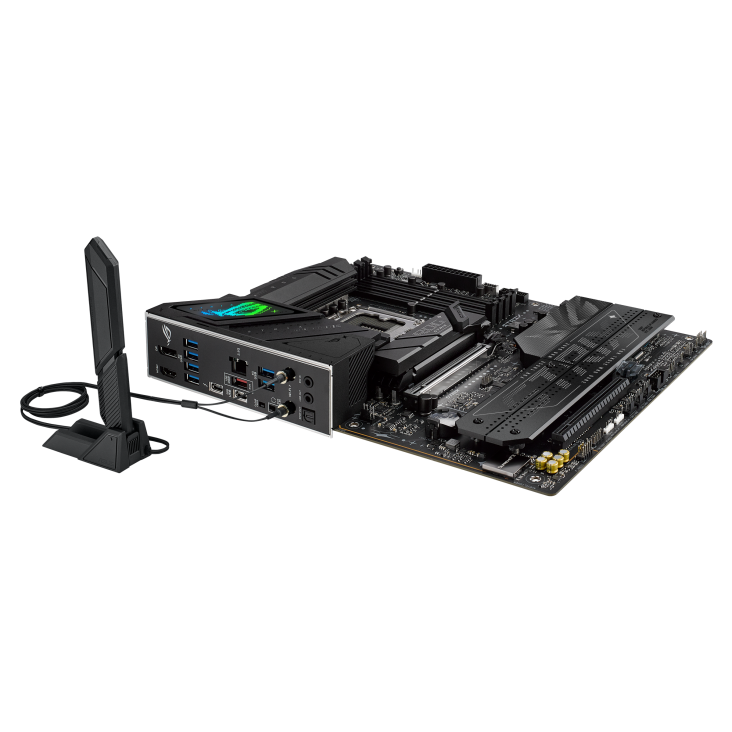

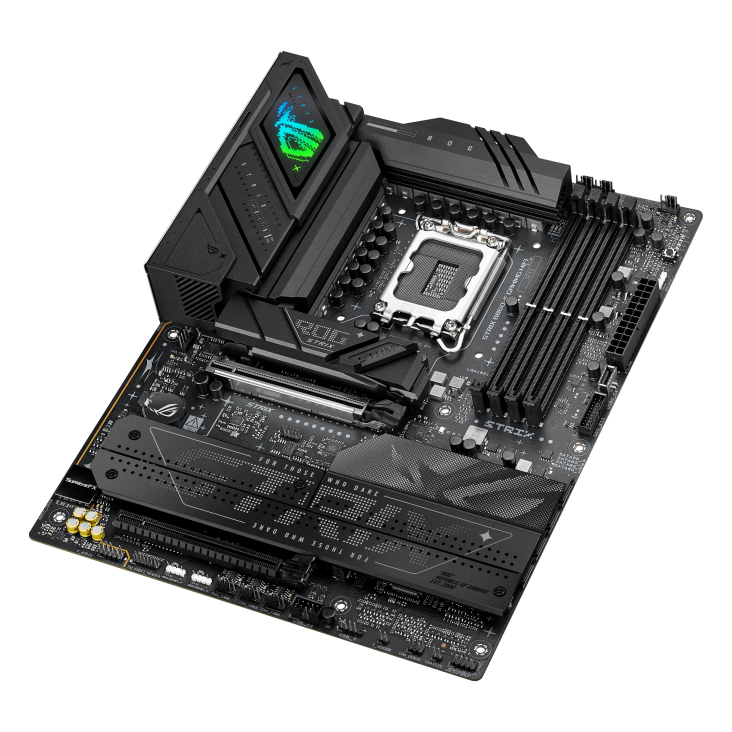

ASUS ROG STRIX B860-F GAMING WIFI ATX Motherboard for Intel Core Ultra Series 2 LGA1851, B860 Chipset, DDR5 9066MHz (OC), PCIe 5.0 x16, 4× M.2 NVMe, Thunderbolt 4, Wi-Fi 7, 2.5GbE LAN, SupremeFX Audio, HDMI 2.1 & DisplayPort

Product Description

The ASUS ROG STRIX B860-F GAMING WIFI is a high-end ATX motherboard designed for Intel® Core™ Ultra processors (Series 2) using the LGA1851 socket and powered by the Intel B860 chipset. Built for gamers and creators, it delivers extreme performance with support for ultra-fast DDR5 memory up to 9066MT/s (OC), PCIe 5.0 graphics, and 4× M.2 NVMe slots for next-gen storage speed.

It features Wi-Fi 7, Intel 2.5Gb Ethernet, and Thunderbolt 4 USB-C, providing cutting-edge connectivity for gaming, streaming, and professional workloads. With ROG SupremeFX audio, advanced thermal design, and ASUS Q-Design EZ DIY features, it ensures premium performance, stability, and easy installation for high-end PC builds.

---

Key Specifications

CPU Support

• Intel® Core™ Ultra Processors (Series 2)
• LGA1851 Socket
• Intel Turbo Boost Technology 2.0 & 3.0 support

---

Chipset

• Intel® B860 Chipset

---

Memory

• 4× DDR5 DIMM slots
• Max capacity: 256GB
• DDR5 up to 9066MT/s (OC)
• Dual-channel architecture
• Supports Intel XMP
• ASUS AEMP III support
• Non-ECC, un-buffered DDR5

---

Graphics Output

• 1× DisplayPort (up to 8K@60Hz)
• 1× HDMI 2.1 (up to 8K@60Hz)
• 1× Thunderbolt 4 USB-C (DisplayPort support)

---

Expansion Slots

• 1× PCIe 5.0 x16 slot (CPU)
• 1× PCIe 4.0 x16 slot (chipset, x4 mode)

---

Storage

• 4× M.2 slots (1× PCIe 5.0 + 3× PCIe 4.0)
• 4× SATA 6Gb/s ports
• Supports RAID 0 / 1 / 5 / 10

---

Networking

• Intel® 2.5Gb Ethernet LAN
• ASUS LANGuard protection

---

Wireless

• Wi-Fi 7 (802.11be) 2×2
• 2.4 / 5 / 6 GHz support
• Bluetooth® 5.4

---

USB Connectivity

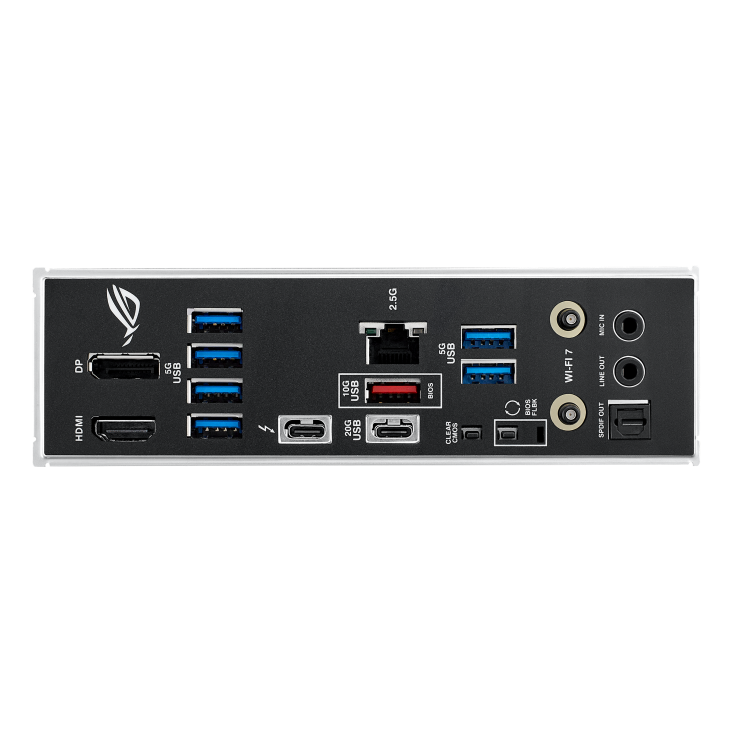

Rear I/O:

• 1× Thunderbolt 4 USB-C
• 1× USB 20Gbps Type-C
• 1× USB 10Gbps Type-A
• 6× USB 5Gbps Type-A

Front Support:

• USB 10Gbps Type-C header
• USB 5Gbps header (2 ports)
• USB 2.0 headers (3 ports total support)

---

Audio

• ROG SupremeFX 7.1 Surround Sound
• Realtek ALC4080 codec
• 120 dB SNR playback / 110 dB recording
• Savitech amplifier
• Optical S/PDIF output

---

Internal Features

• 24-pin + dual 8-pin CPU power
• 5× fan headers (CPU, OPT, AIO, chassis)
• 3× ARGB Gen2 headers
• Thermal sensor header
• Start button + Clear CMOS
• Thunderbolt header support

---

Special Features

• ASUS Q-Design (M.2 Q-Latch, PCIe Q-Release Slim)
• ROG Thermal Solution (VRM + M.2 heatsinks)
• BIOS FlashBack & Clear CMOS button
• SafeSlot & SafeDIMM protection
• Aura Sync RGB support
• Pre-mounted I/O shield
• Q-LED diagnostic system

---

Form Factor

• ATX (30.5 cm × 24.4 cm)

---

Operating System

• Windows 11 (22H2 or later)
