ASUS ROG STRIX 1000G, 80Plus Gold, Fully modular Power Supply

Model

ROG-STRIX-1000G

PFC Type

Active PFC

Dimensions

190 x 150 x 86 mm

Efficiency

80Plus Platinum

MTBF

>120,000 hrs @ 25°C

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

25A 25A 83A 0.3A 3A

Combined Load

125W 125W 996W 3.6W 15W

Total Output

1000W

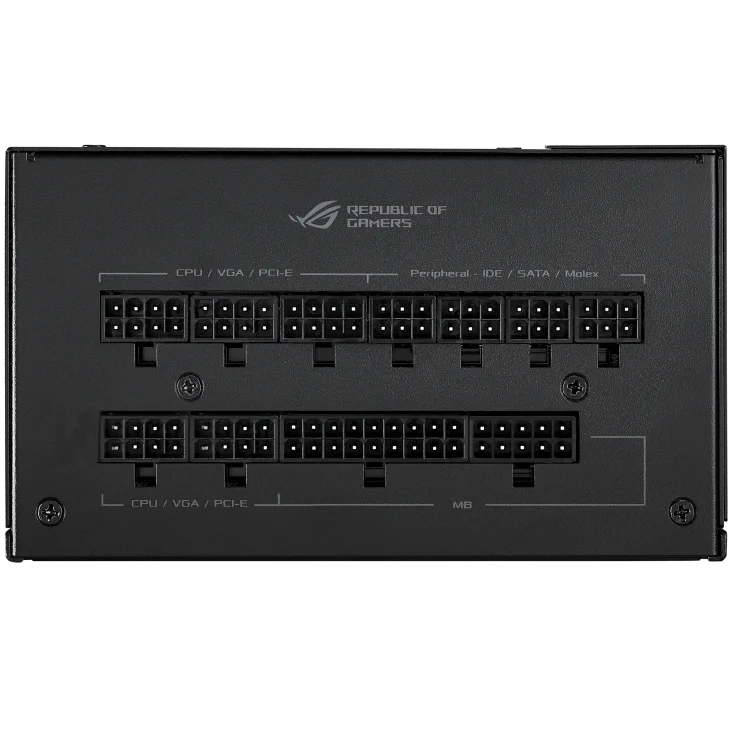

Cable Connectors

MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (component side)
PCI-E 6+2-pin x 8
SATA x 12
PERIPHERAL x 6

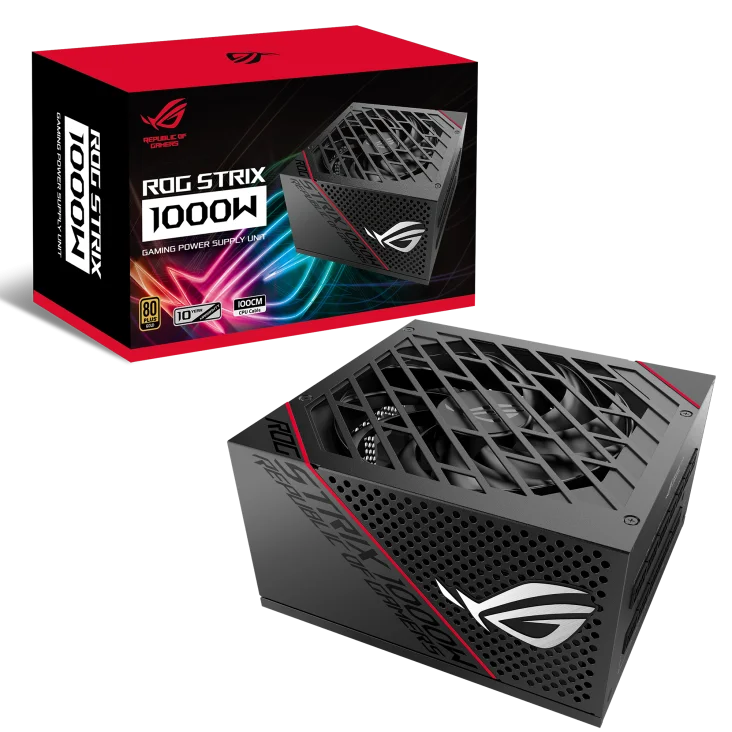

Package Contents

Power Cord x 1
Motherboard Power Cable x1 (610mm)
CPU Cable x2 (650mm)
PCIE Cable 16-pin x1 (675mm)
PCIE 1-to-1 Cable x4 (675mm)
PCIE 1-to-2 Cable x2 (675+75mm)
SATA 1-to-4 Cable x3 (400+120+120+120mm)
Peripheral 1-to-3 Cable x2 (450+120+120mm)
Addressable RGB Cable x1 (800mm)
ROG sticker x 1
ROG cable tie x 6
Sleeved Cable Combs (6-pin) x 4
Sleeved Cable Combs (8-pin) x 10
Sleeved Cable Combs (24-pin) x 2
Chassis Screws Package x 1
Cable Tie x 12
User Manual x 1

Weight

2.37 KG

AURA SYNC

ARGB

Cybenetics Noise Level Certification

A++

0dB Technology

Supported. The fan shuts off entirely when the PSU is under certain load
