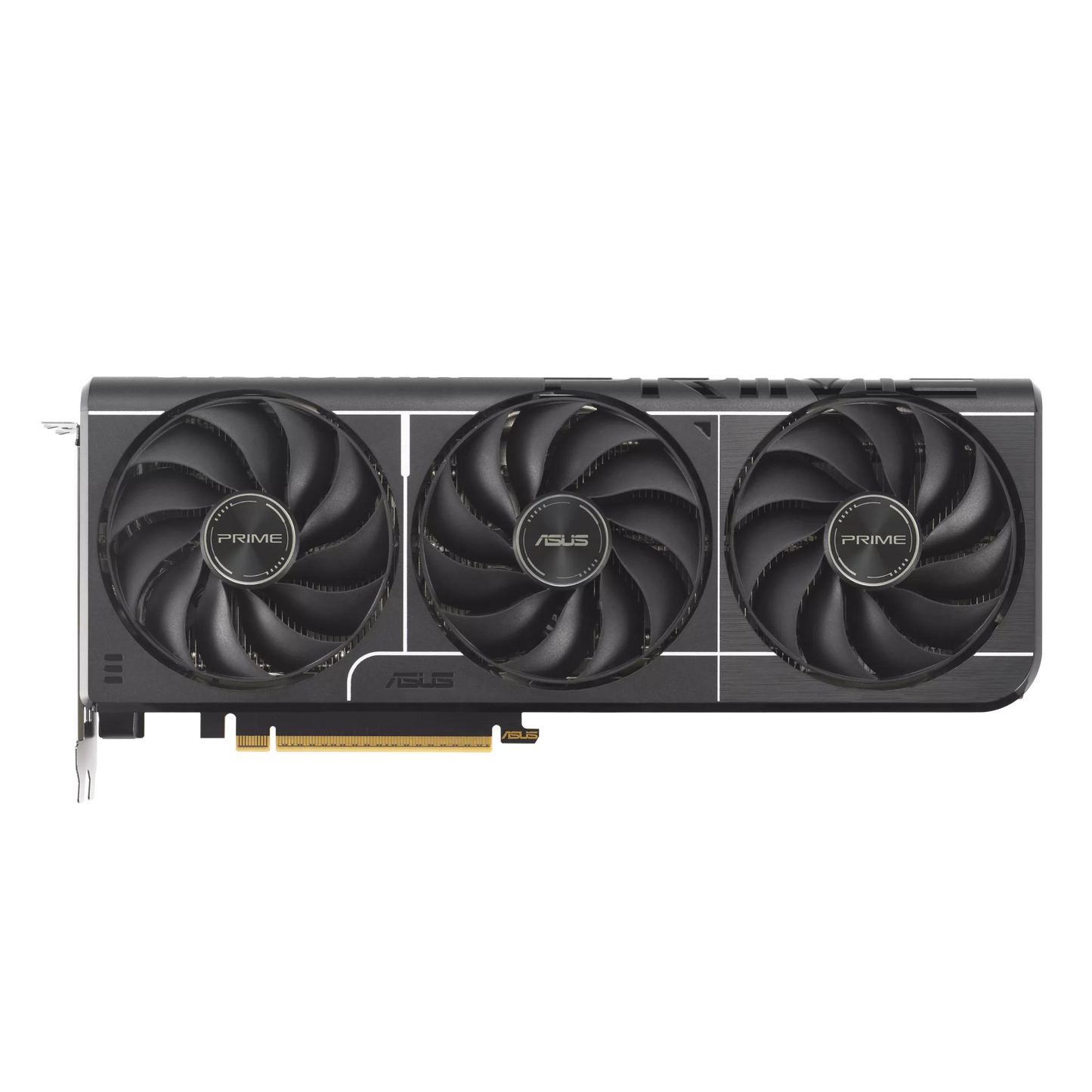

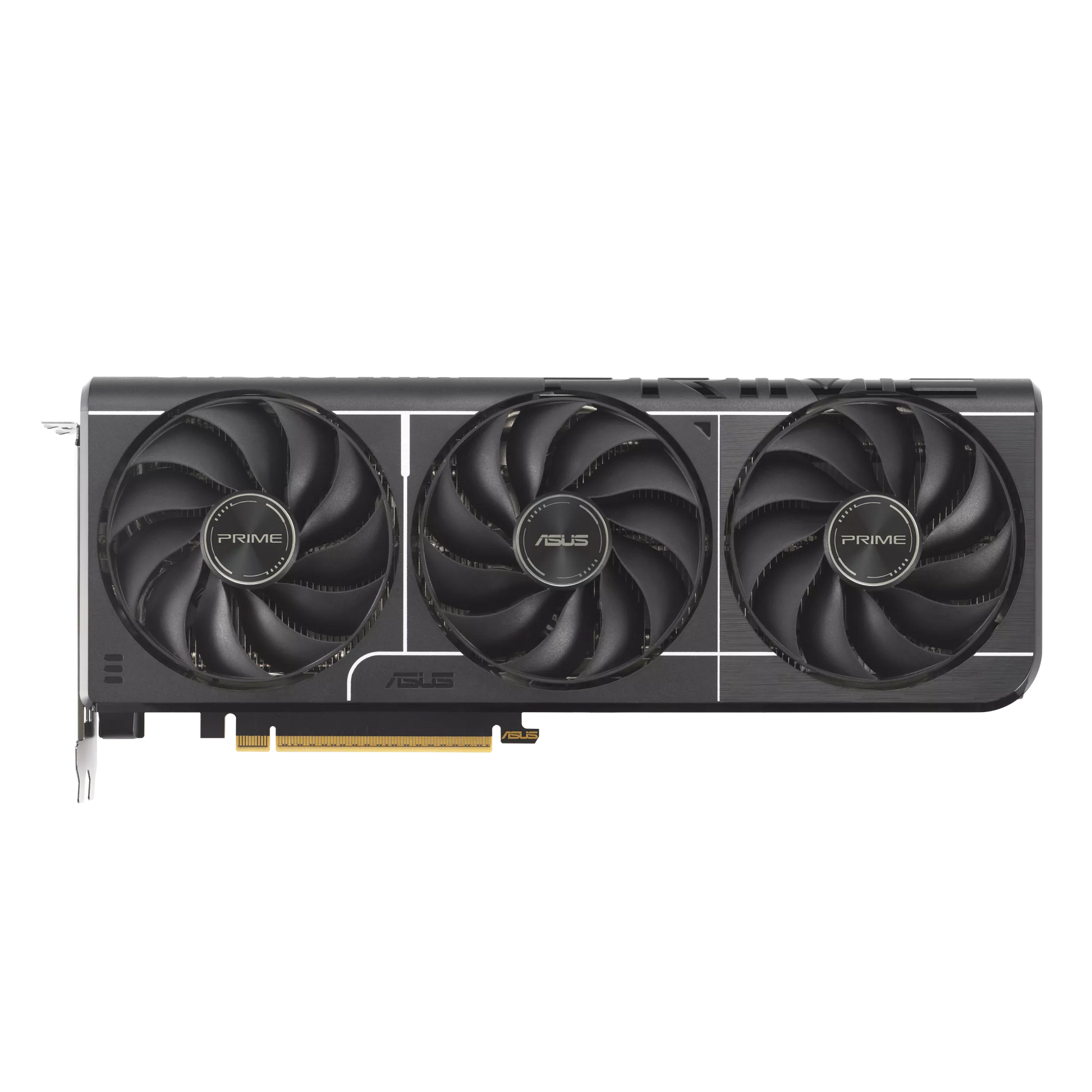

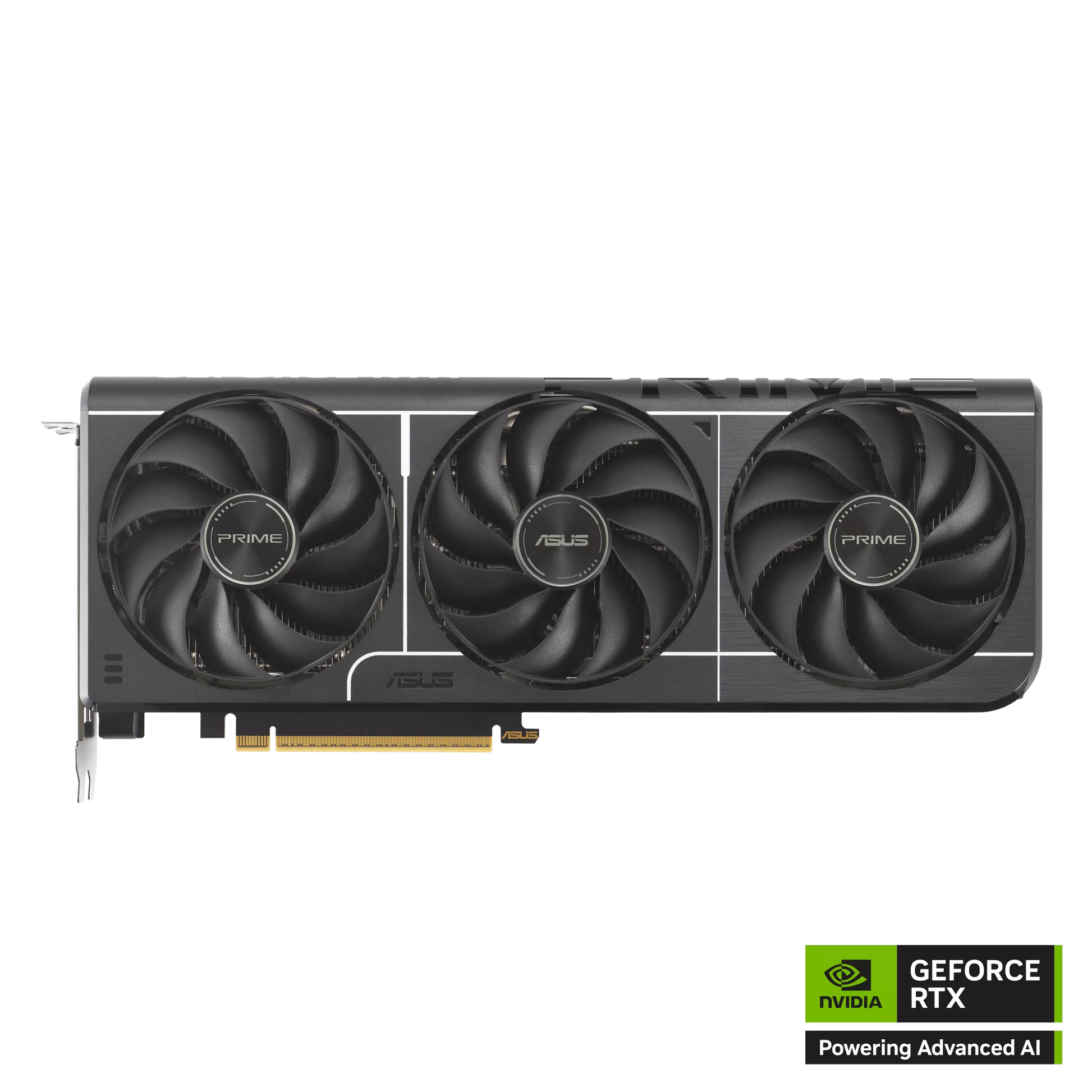

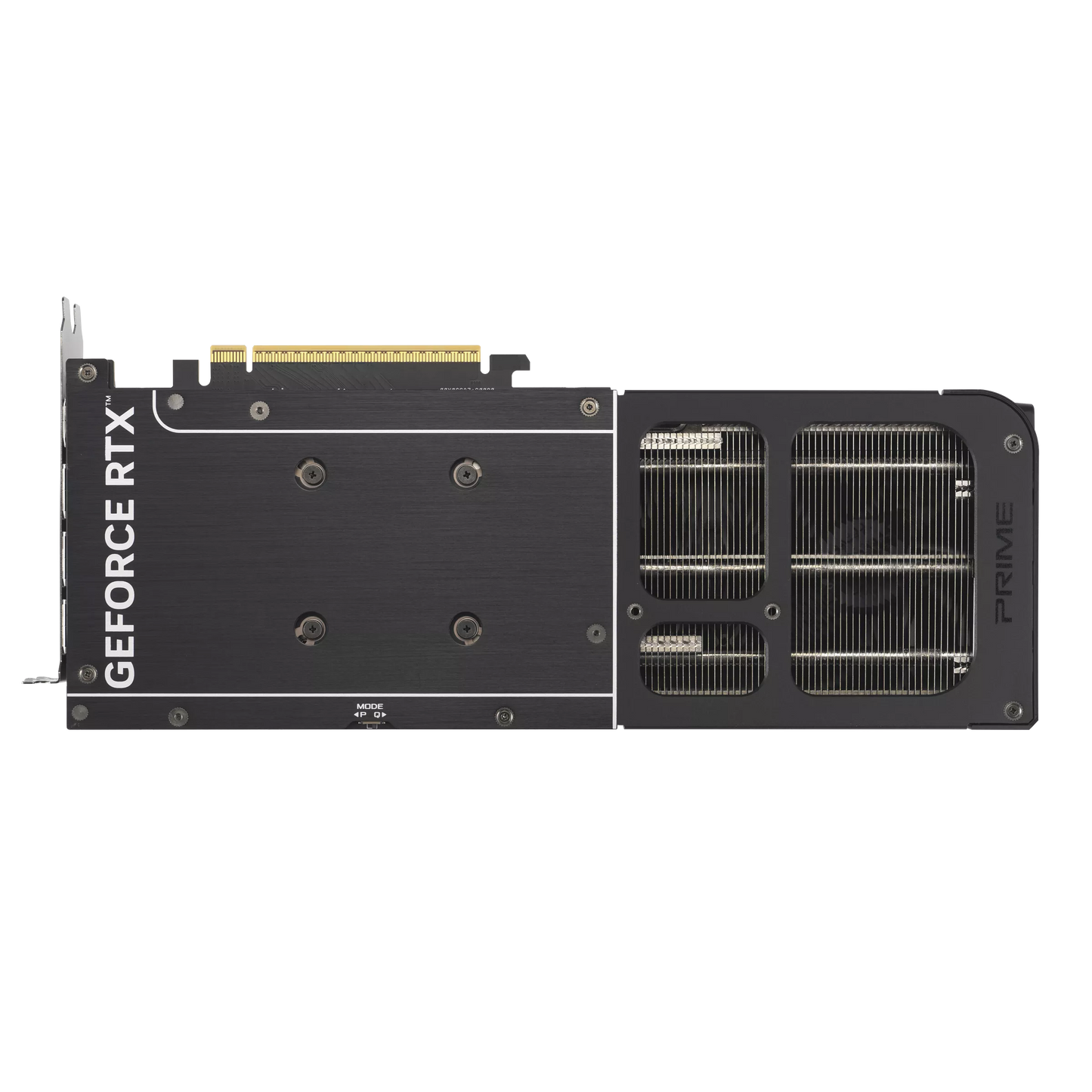

ASUS PRIME GeForce RTX™ 5060 Ti 16GB GDDR7
ASUS PRIME GeForce RTX™ 5060 Ti 16GB GDDR7
Couldn't load pickup availability

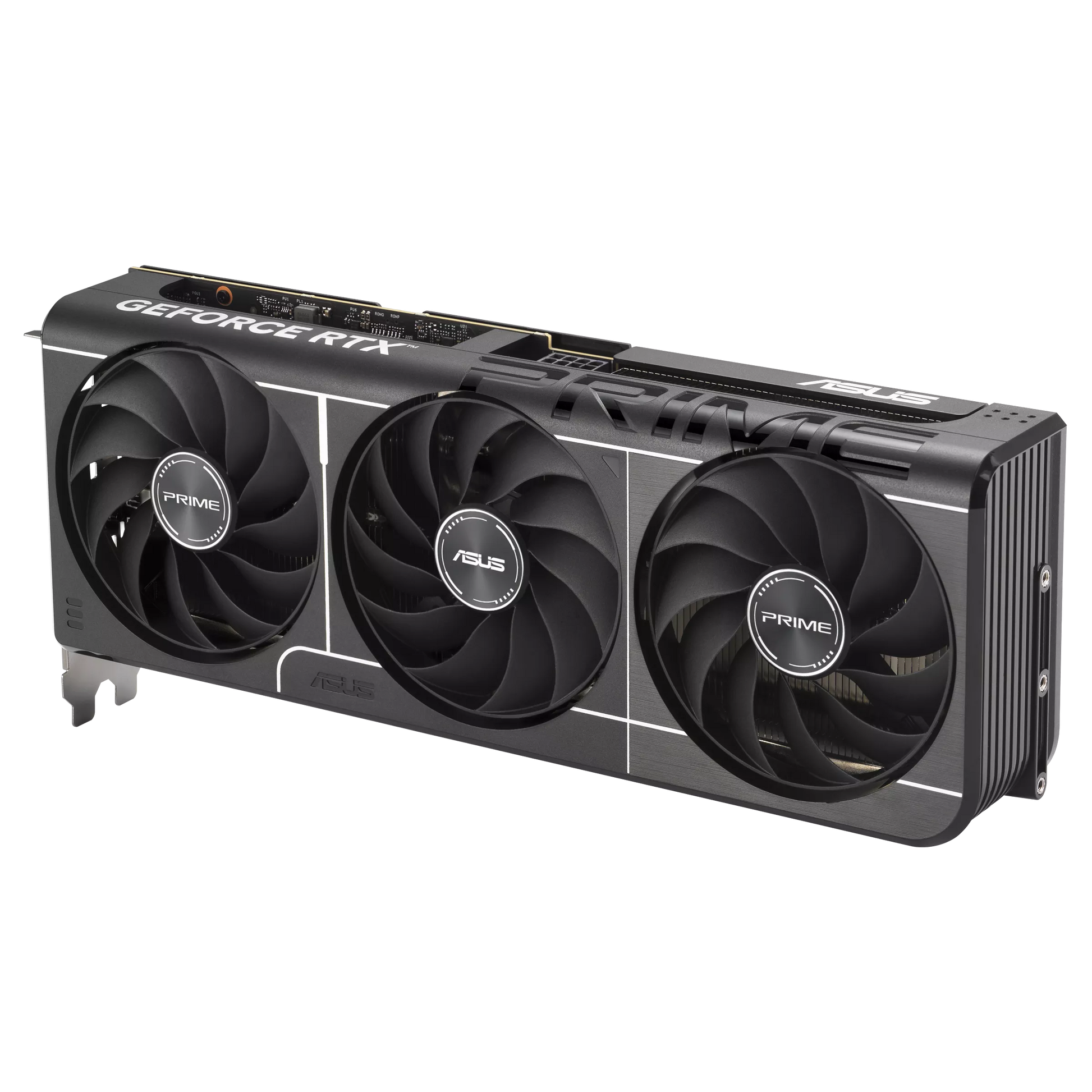

The ASUS PRIME-RTX5060TI-16G is a high-performance graphics card powered by the NVIDIA® GeForce RTX™ 5060 Ti GPU. It features 16GB of high-speed GDDR7 memory with a 28 Gbps memory speed and a 128-bit memory interface, delivering smooth performance for modern gaming, content creation, and AI-powered workloads. With 4,608 CUDA cores and up to 759 TOPS of AI performance, it is well-suited for AI-enhanced applications, ray tracing, and high-frame-rate gaming.

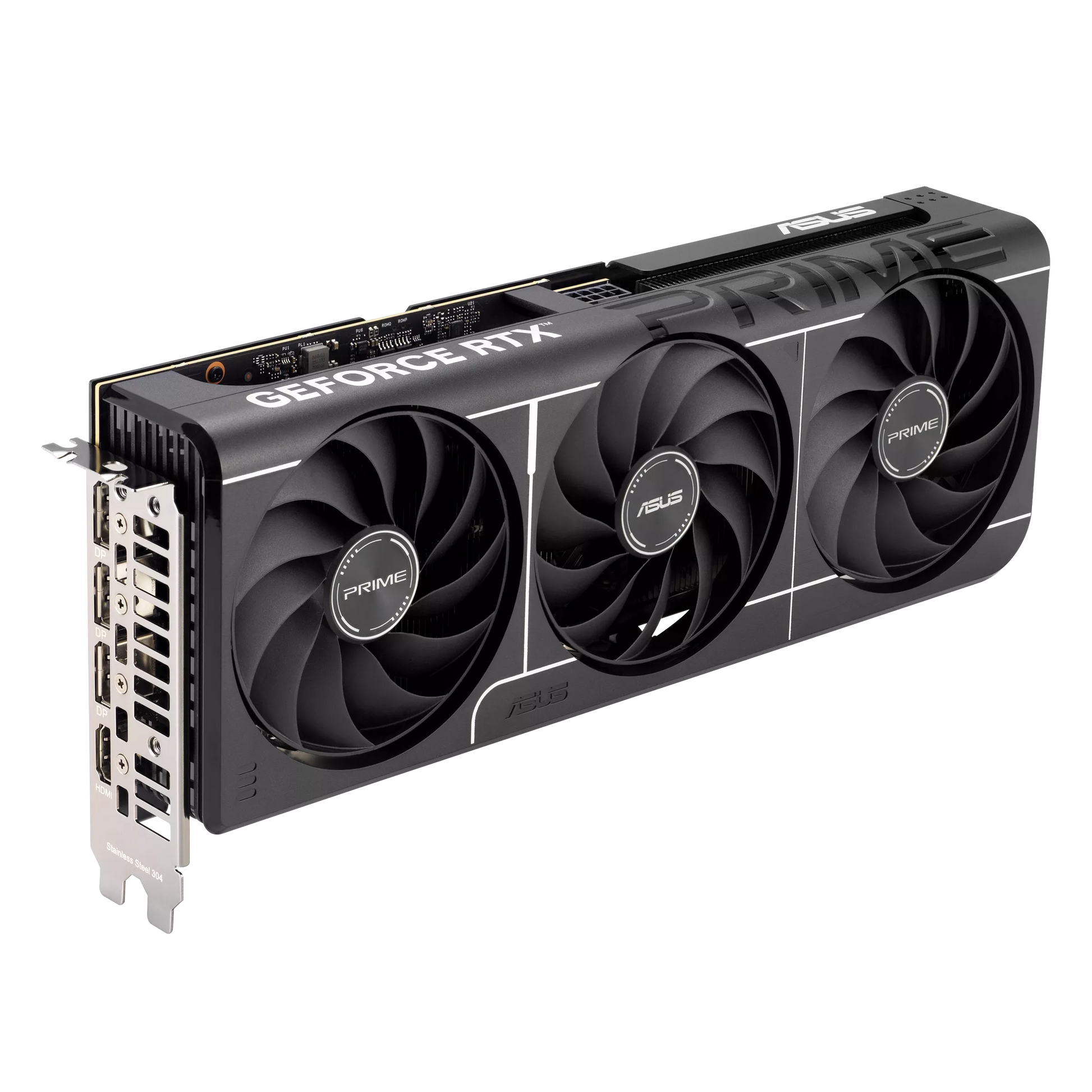

Built on the PCI Express 5.0 interface, the card supports the latest platforms for maximum bandwidth. It operates at a boost clock of up to 2,602 MHz (OC Mode) and supports OpenGL 4.6. The card can drive up to four displays simultaneously through one HDMI 2.1b port and three DisplayPort 2.1b outputs, supporting a maximum digital resolution of 7680 × 4320 (8K).
The graphics card uses a 2.5-slot design, measures 304 × 120 × 50 mm, and requires only a single 8-pin PCIe power connector, with a 550W power supply recommended. It also includes ASUS software such as GPU Tweak III and MuseTree, along with access to NVIDIA GeForce Game Ready and Studio Drivers, making it an excellent choice for gamers, creators, and professionals seeking reliable performance and advanced graphics capabilities.
Here's your GPU specifications formatted into a clean table:
| Specification | Details |
|---|---|
| Model | PRIME-RTX5060TI-16G |
| Graphics Engine | NVIDIA® GeForce RTX™ 5060 Ti |
| AI Performance | 759 TOPS |
| Bus Standard | PCI Express 5.0 |
| OpenGL | OpenGL® 4.6 |
| Video Memory | 16GB GDDR7 |
| Engine Clock | OC Mode: 2602 MHzDefault Mode: 2572 MHz (Boost Clock) |
| CUDA Cores | 4608 |
| Memory Speed | 28 Gbps |
| Memory Interface | 128-bit |
| Maximum Resolution | 7680 × 4320 |
| Display Outputs | 1 × HDMI 2.1b3 × DisplayPort 2.1b |
| HDCP Support | Yes (2.3) |
| Maximum Displays | 4 |
| NVLink / CrossFire Support | No |
| Power Connector | 1 × 8-pin PCIe |
| Recommended PSU | 550W |
| Expansion Slot Size | 2.5 Slot |
| Dimensions | 304 × 120 × 50 mm |

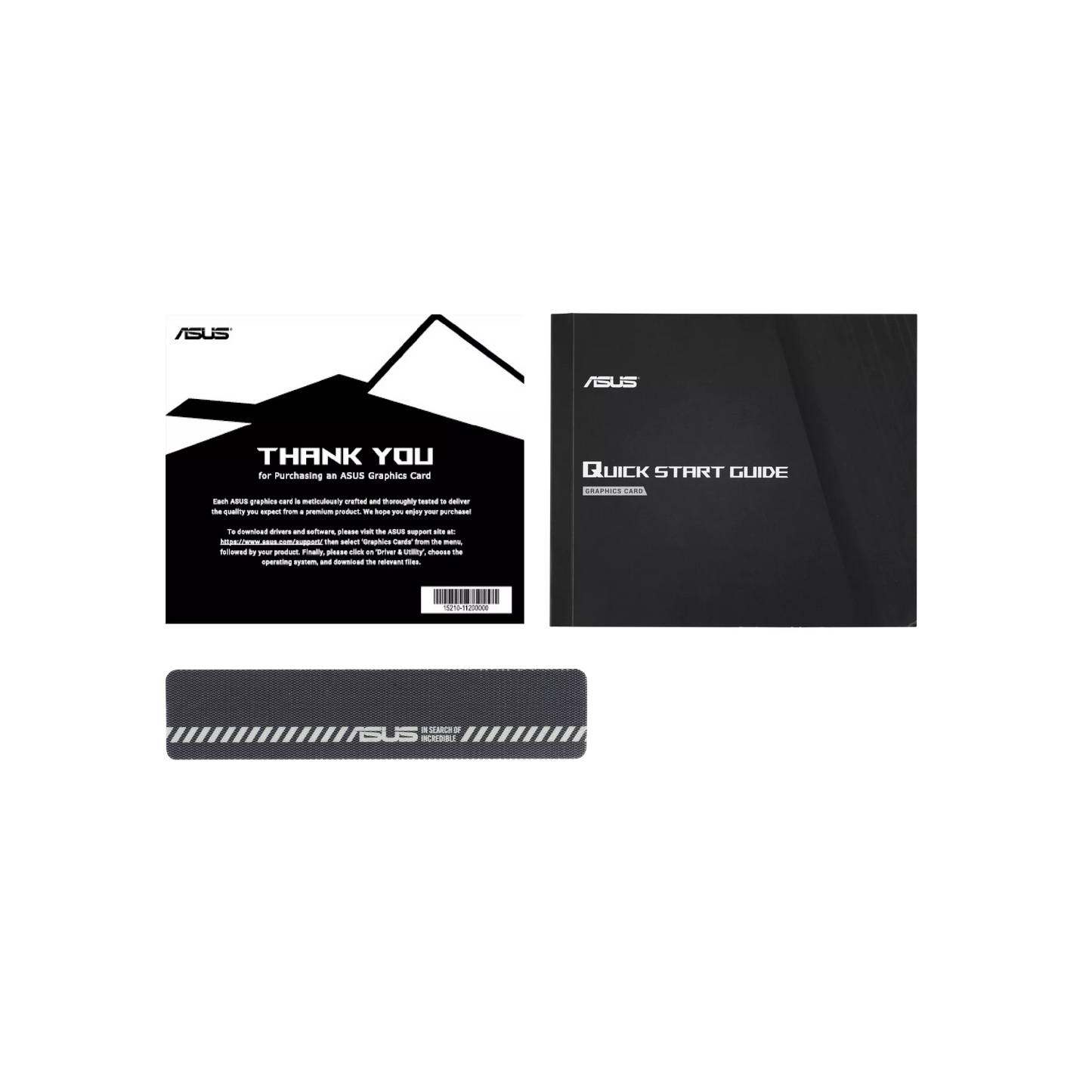

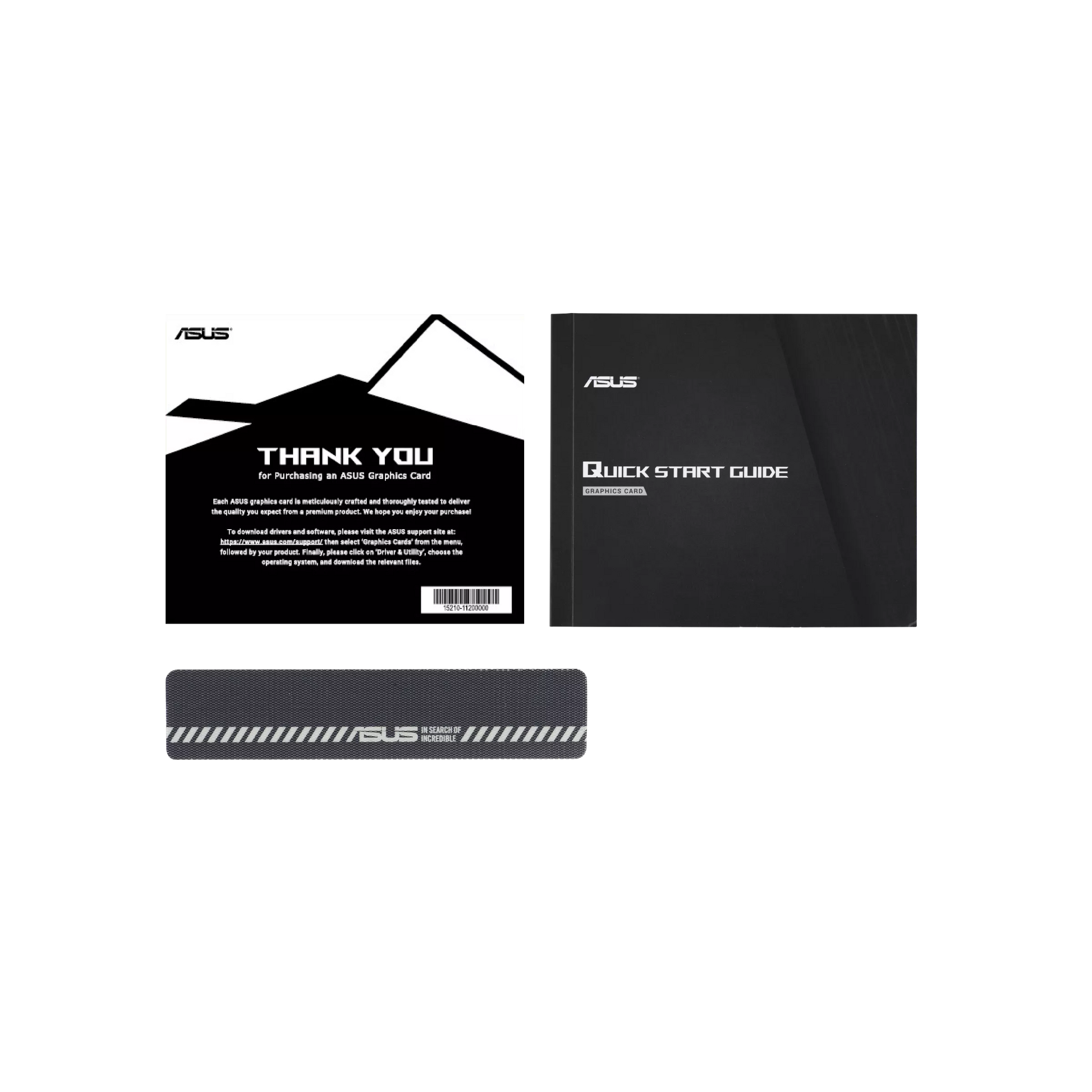

| Accessories | Speedsetup Manual, ASUS Velcro Hook & Loop, Thank You Card |
| Software | ASUS GPU Tweak III, MuseTree, GeForce Game Ready Driver, Studio Driver (download from ASUS support site) |
| Notes | PSU recommendation is based on a fully overclocked CPU and GPU system. Specifications may change without notice and vary by market. |
