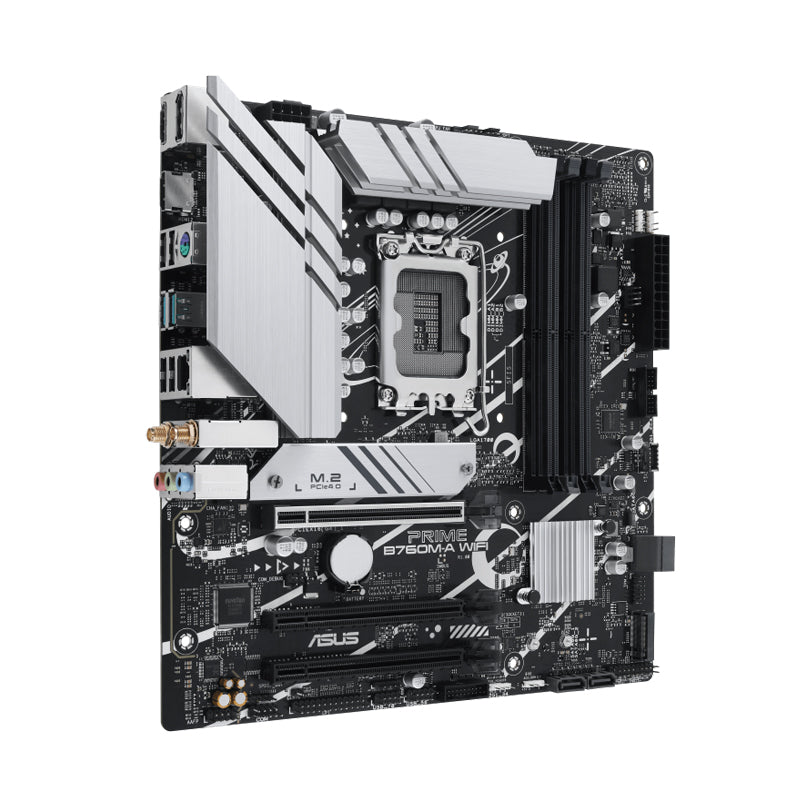

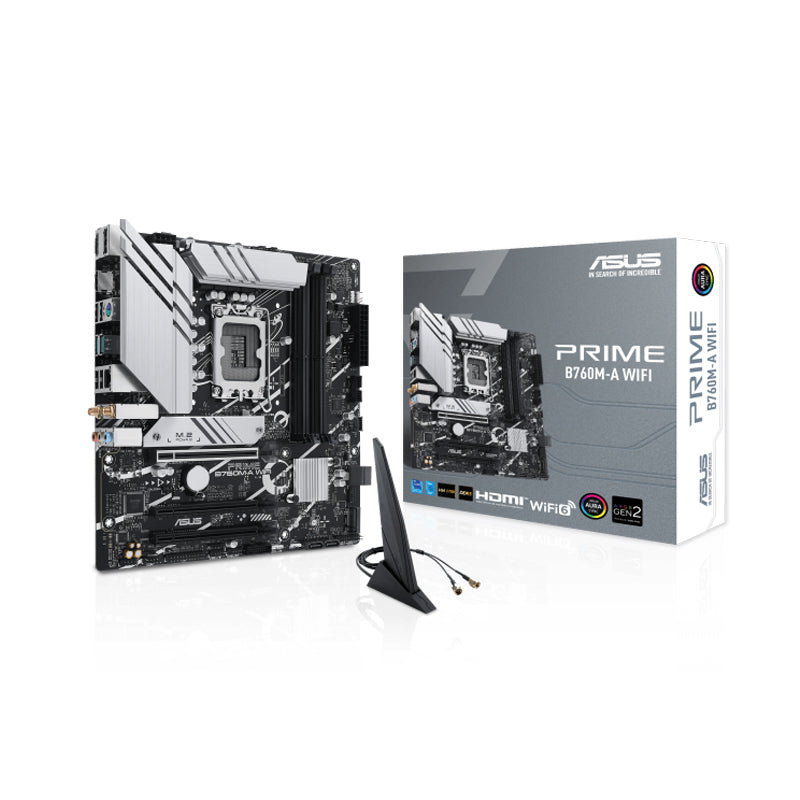

Asus PRIME B760M-A WIFI D4 Motherboard, Intel B760 (LGA 1700) mATX motherboard, PCIe 4.0, 4 x DIMM, 2x M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, Dual HDMI, SATA 6 Gbps, USB 3.2 Gen 2, Type-C, Aura Sync

Asus PRIME B760M-A WIFI D4 Motherboard, Intel B760 (LGA 1700) mATX motherboard, PCIe 4.0, 4 x DIMM, 2x M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, Dual HDMI, SATA 6 Gbps, USB 3.2 Gen 2, Type-C, Aura Sync

61.360 BHD
61.360 BHD
Sale Sold out
Model PRIME B760M-A WIFI D4
News & Updates 2024/08/12: The new BIOS with Intel microcode (0x129) enhancing the stability of Intel Core 13th and 14th Gen desktop processors is now available. Please visit support site for the latest BIOS updates.
CPU Intel® Socket LGA1700 for Intel® Core™ 14th, 13th, and 12th Gen Processors, Pentium® Gold, and Celeron® Processors
Chipset Intel® B760 Chipset
Memory 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports Intel® XMP
Graphics 1 x DisplayPort (4K@60Hz), 2 x HDMI® 2.1 (4K@60Hz)
Expansion Slots Intel® Core™ Processors:
  • 1 x PCIe 4.0 x16 slot
Intel® B760 Chipset:
  • 1 x PCIe 4.0 x16 slot (supports x4 mode)
  • 1 x PCIe 4.0 x16 slot (supports x1 mode)
Storage 2 x M.2 slots (PCIe 4.0 x4 mode), 4 x SATA 6Gb/s ports, supports Intel® Rapid Storage Technology with RAID 0/1/5/10
Ethernet 1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth Wi-Fi 6 (2x2 802.11 a/b/g/n/ac/ax), Bluetooth v5.2
USB Rear USB (6 ports):
  • 2 x USB 3.2 Gen 2 Type-A
  • 4 x USB 2.0 Type-A
Front USB (10 ports):
  • 2 x USB 3.2 Gen 1 headers (supports 4 ports)
  • 1 x USB 3.2 Gen 1 Type-C®
  • 2 x USB 2.0 headers (supports 4 ports)
  • 1 x USB 2.0 header (supports 1 port)
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC, supports Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192 kHz playback
Back Panel I/O Ports
  • 2 x USB 3.2 Gen 2 Type-A
  • 4 x USB 2.0 Type-A
  • 1 x DisplayPort
  • 2 x HDMI® ports
  • 1 x Wi-Fi Module
  • 1 x Realtek 2.5Gb Ethernet port
  • 3 x Audio jacks
  • 1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors Fan and Cooling related:
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 2 x 4-pin Chassis Fan headers
Power related:
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
Storage related:
  • 2 x M.2 slots
  • 4 x SATA 6Gb/s ports
USB related:
  • 2 x USB 3.2 Gen 1 headers (4 ports)
  • 1 x USB 3.2 Gen 1 Type-C®
  • 2 x USB 2.0 headers (4 ports)
  • 1 x USB 2.0 header (1 port)
Miscellaneous:
  • 3 x Addressable Gen 2 headers
  • 1 x Aura RGB header
  • 1 x Clear CMOS header
  • 1 x Front Panel Audio header
  • 1 x S/PDIF Out header
Special Features ASUS 5X PROTECTION III, Q-Design, Thermal Solution, EZ DIY, Aura Sync
Software Features Armoury Crate, AI Suite 3, ASUS CPU-Z, MyAsus, Norton Deluxe (60 Days Free Trial), WinRAR
BIOS 128 Mb Flash ROM, UEFI AMI BIOS, ASUS EZ DIY (CrashFree BIOS 3, EZ Flash 3, UEFI BIOS EZ Mode)
Manageability WOL by PME, PXE
Accessories
  • 2 x SATA 6Gb/s cables
  • 1 x ASUS Wi-Fi moving antennas
  • 1 x I/O Shield
  • 1 x M.2 Rubber Package
  • 1 x Screw package for M.2 SSD
  • 1 x User guide
Operating System Windows® 11, Windows® 10 64-bit
Form Factor mATX Form Factor (9.6 inch x 9.6 inch)
